Advantech Corporation: Low Density Combined Isolated/TTL PCI Express DAQ Card

Using the PCI Express interface, the PCIE-1730 has a much faster data transfer rate than standard PCI cards, offers up to 32 isolated channels, and does not require additional development software.
Related To:
Nov. 9, 2012

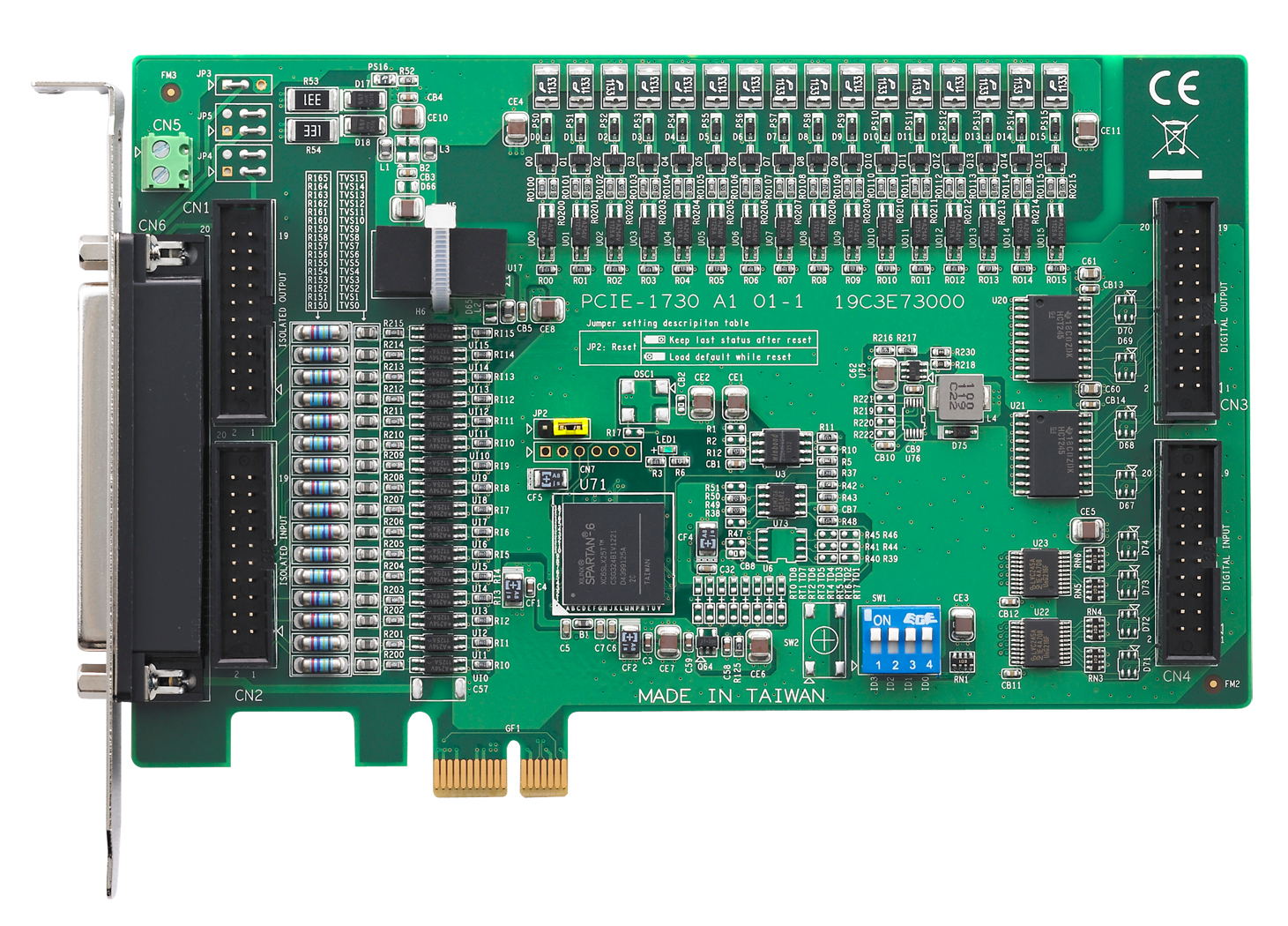

Aw 13452 1211np Advantech

The unit has 32 low density isolated digital I/O channels and 32 TTL channels making it possible to use the card in a range of applications. The digital output can be as high as 500 mA per channel to allow transmission of large amounts of data. Since the PCI Express bus is similar to the standard PCI bus, the card can be configured using DAQNavi software. To help with the development of configurations and applications, the company provides a range of options such as an SDK which works with Visual C++, Visual Basic, VB.NET, C#, Delphi, BCB, LabVIEW, QT and Java. Also included is the integrated utility, which provides configuration, function testing, documentation and many practical coded examples.


>>For more information on this product, click here
