Automation Direct, Inc: High-Speed Counter and Ethernet Modules
March 27, 2013

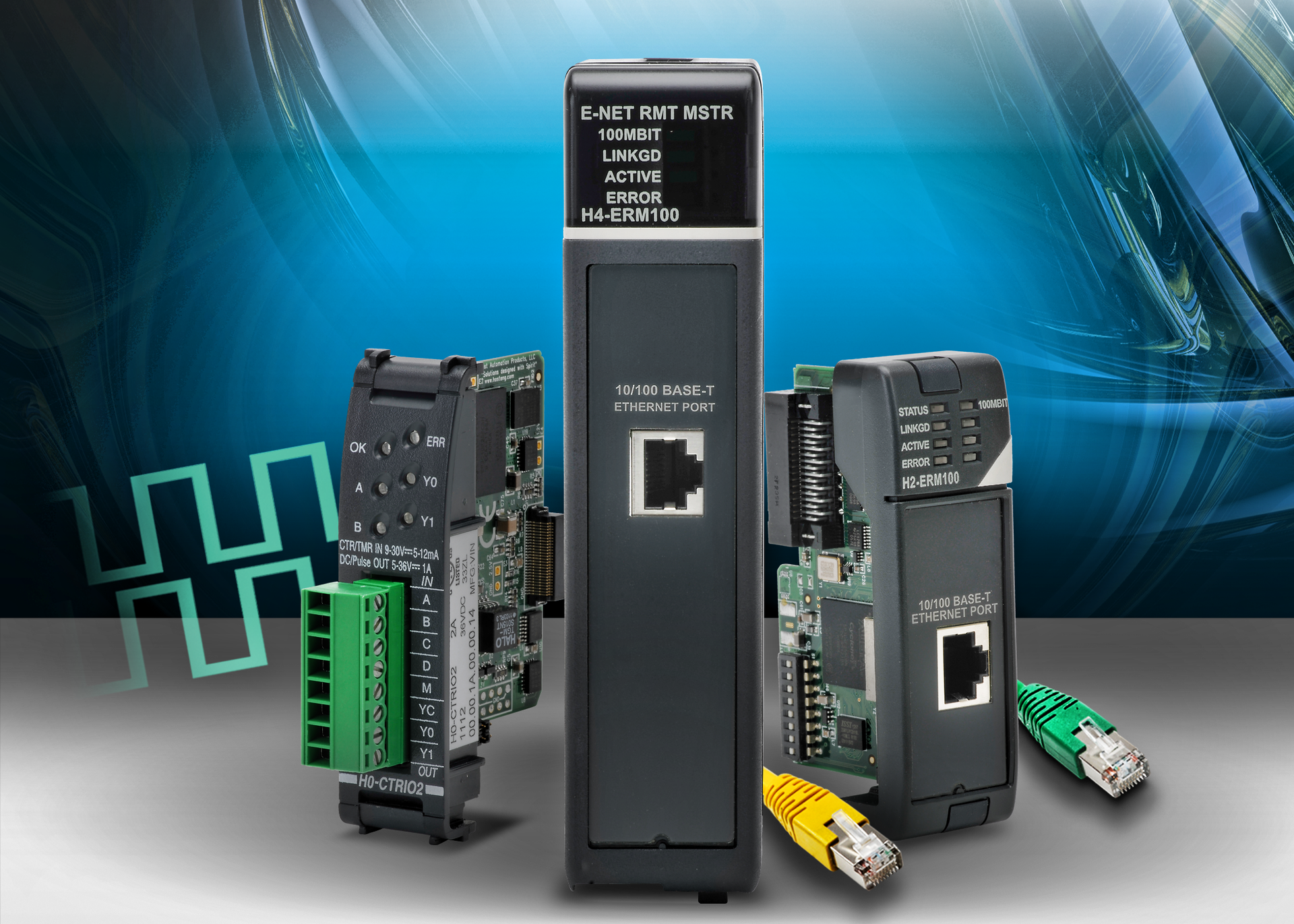

Designed for all DirectLOGIC DL05 or DL06 PLCs, the H0-CTRIO2 module offers great flexibility for applications requiring precise counting or timing, based on an input event or high-speed control output.
The module is designed to work with incremental encoders or other field devices that send pulse outputs and features four 9-30 VDC sinking/sourcing inputs and two isolated sinking/sourcing DC outputs. Supported inputs include one quadrature encoder counter up to 250 kHz or two single-channel counters up to 250 kHz; supported outputs include two independently configurable high-speed discrete outputs or one channel pulse output control. Additional Ethernet Remote Master modules include the H2-ERM100 and the H4-ERM100. The H2-ERM100 connects any DL205 or Do-more H2 Series PLC's local CPU base to remote slave I/O over 10/100BaseT Ethernet. The H4-ERM100 connects the DirectLOGIC DL430, DL440 and DL450 CPU bases to Ethernet Base Controller (EBC) slave I/O over 10/100BaseT Ethernet.
