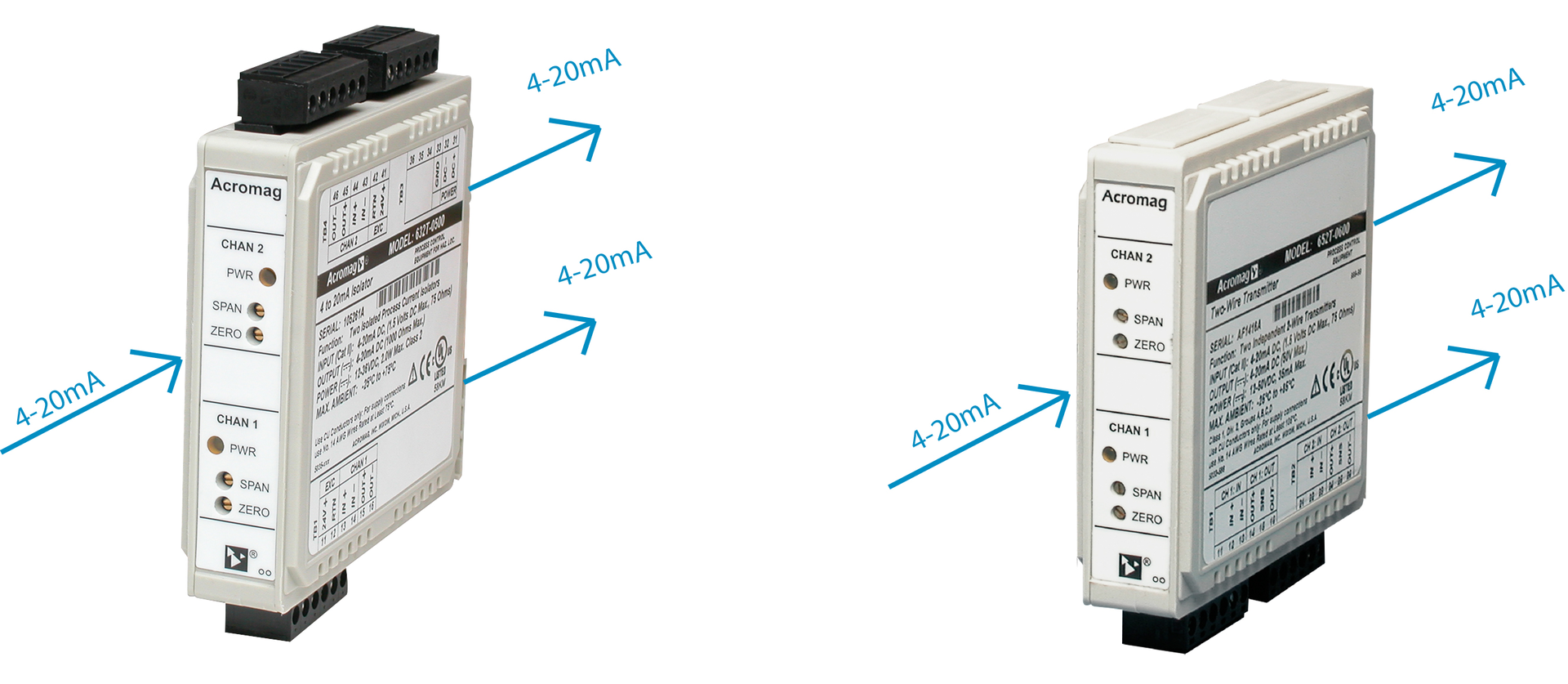

Each channel operates independently to prevent interaction between channels. Galvanic isolation eliminates ground loops, reduces noise, and blocks transient signals. Splitters are available in 2-wire loop-powered and 4-wire AC/DC-powered models. The loop powered model runs on 12-50 VDC power from the output loop, has a built-in isolated excitation supply with short circuit protection, and can drive up to two field 2-wire process loops. The AC/DC-powered unit runs on 5-36 VDC SELV or 90-250 VAC with a low input burden that keeps voltage drop to less than 1.5 V for full-scale current and support wide 0 to 1000 ohm load range with no trimming is required if the load varies. Current limiting safely limits output to 27 mA. The splitters are DIN-rail mountable and feature removable terminal blocks. Both units feature pluggable terminals, zero/span trim pots and power LEDs that make installation, maintenance, and long term service easy.
