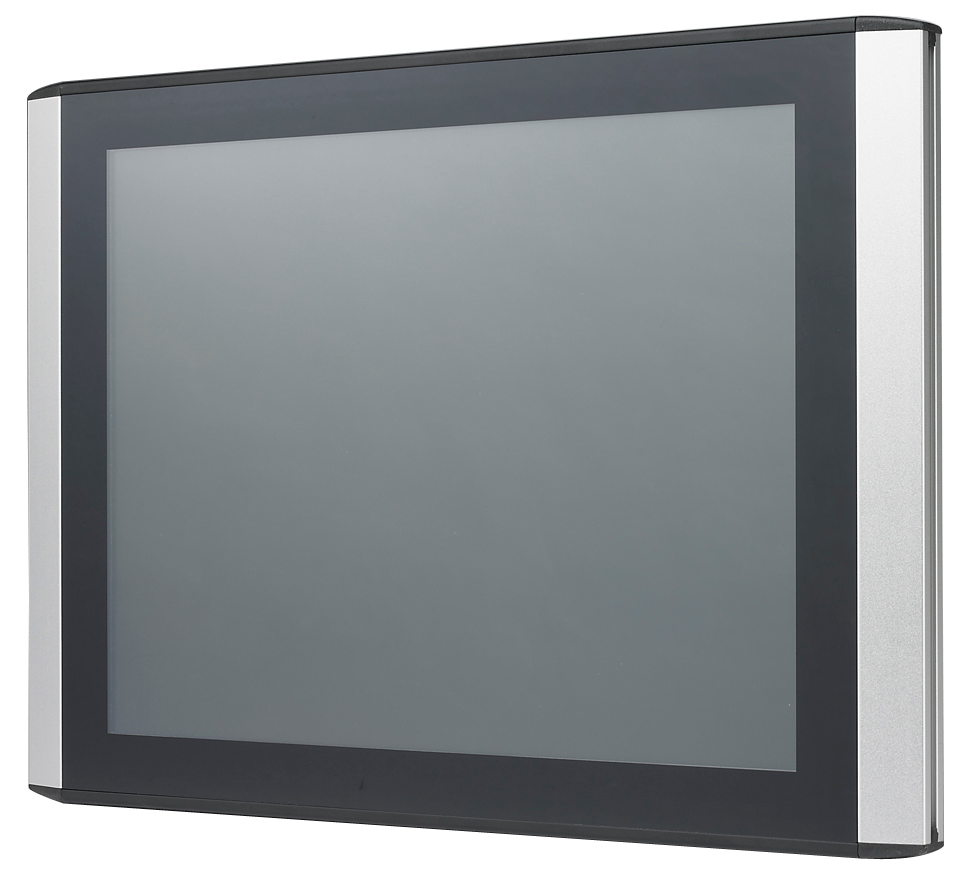

Advantech: Entry Level Industrial Panel Monitors

The ITM-51xx series of 12-, 15- and 17-inch flat touch panel monitors are both attractive and suitable for harsh environments.

Jan 13th, 2014

Aw 20390 1401np Advantech

The LED backlight display provides a power saving of 20-30%, enhances readability and increases the life of the panel. A five-wire resistive touch screen increases touch accuracy, while panel brightness is rated at 450 mc/square meter with 60,000 hr rated backlight lamp lifetime. For the purposes of easy cleaning the series have an entirely smooth flat panel that is IP54 protected and has no ridges. For use in harsh environments, the units have an operating temperature as low as -20 °C and as high as 60 °C (-4 to 140 ºF). The monitors have VGA and DVI input interfaces and a combo RS-232 and USB interface for touch usage. EMC compliance is CE/FCC/CCC/BSMI, while safety rating is CB/UL/CCC/BSMI.

>>For more information on this product, click here
http://www.advantech.com/products/Industrial-Touch-Monitor/sub_1B947DE0-9E96-463C-87EC-E36DEA80A2ED.aspx

Advantech Industrial Automation Group
www.advantech.com/ea
888.576.9668
