Balluff: RFID Data Carrier with Extra-Large Memory

The BIS V signal processor supports all the features found on new data carriers, but also significantly simplifies hardware and installation for users.

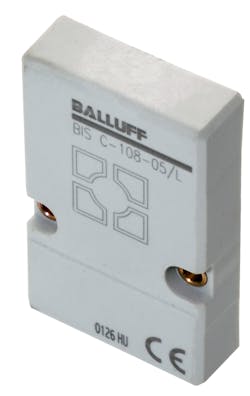

Aw 20453 1401np Balluff

Featuring memory of up to 128 kB, the data carriers work up to eight times as fast as the standard ISO 15693, making them suitable for track-and-trace applications with high data volumes such as those used in assembly lines in the automotive industry. Built with FRAM technology, the data carriers are maintenance-free, require no external energy supply and have virtually unlimited read/write cycles. Their high degree of protection (up to IP 68) helps ensure trouble-free communication with a high level of data security, even in difficult environments. Units are available for with a choice of Profibus, EtherCAT, Ethernet/IP or CC-Link interface. Up to four HF read/write heads (13.56 MHz) in accordance with ISO 15693 and ISO 14443 or LF read/write heads (125 kHz) can be connected in the front with plug-in connectors and are then automatically recognized.

>>For more information on this product, click here
