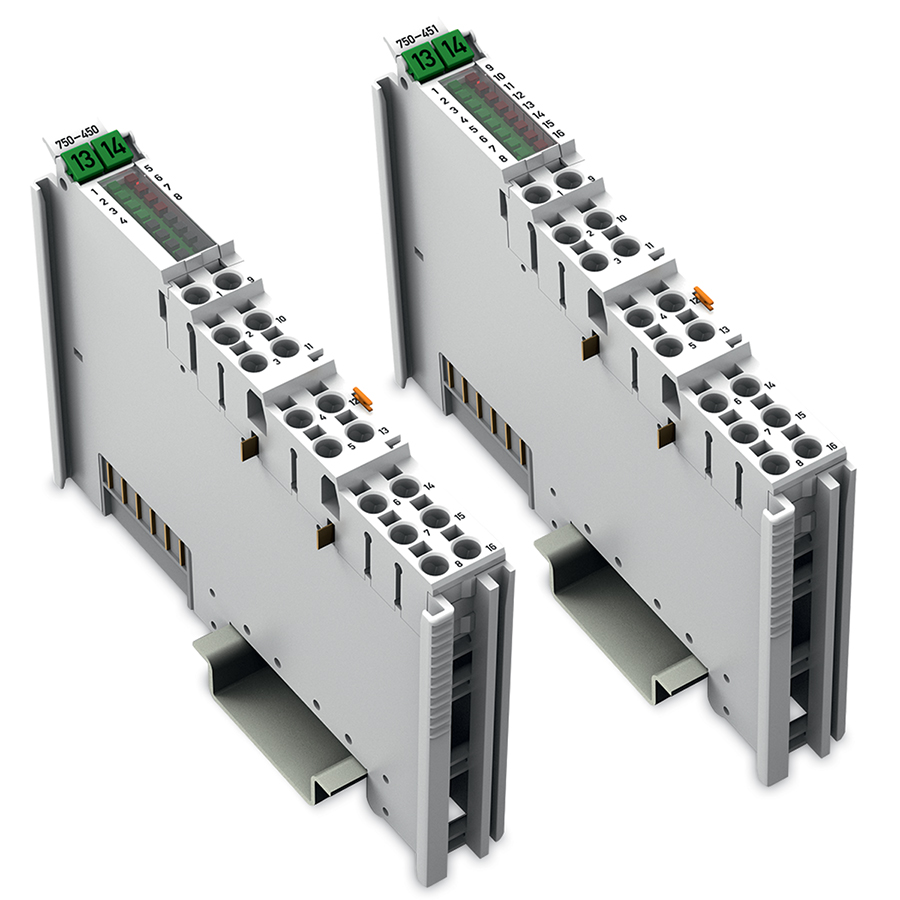

The 750-450 four-channel and 750-451 eight-channel RTD analog input modules directly connect to Pt and Ni resistance sensors, providing highly accurate reading of sensor data.
Features include configurability for multiple sensor types or potentiometers; a red status LED that indicates sensor errors (short circuit, wire break or out-of measurement range); a compact 12 mm profile that saves cabinet space; and choice of two-, three- or four-wire connection technology, The modules are suitable for a wide range of temperature data collection tasks in factory automation, motor and process control applications. Resolution is 0.1 ºC over the entire range, accuracy is ±0.2 K or ± 0.6 K, depending on the type of Pt RTD used (0.01 ºC from 50 to 150 ºC using Pt1000), or ±0.3 O for resistance measurement.
>>For more information on this product, click here
Wago Corporation
www.wago.us
800.346.7245
