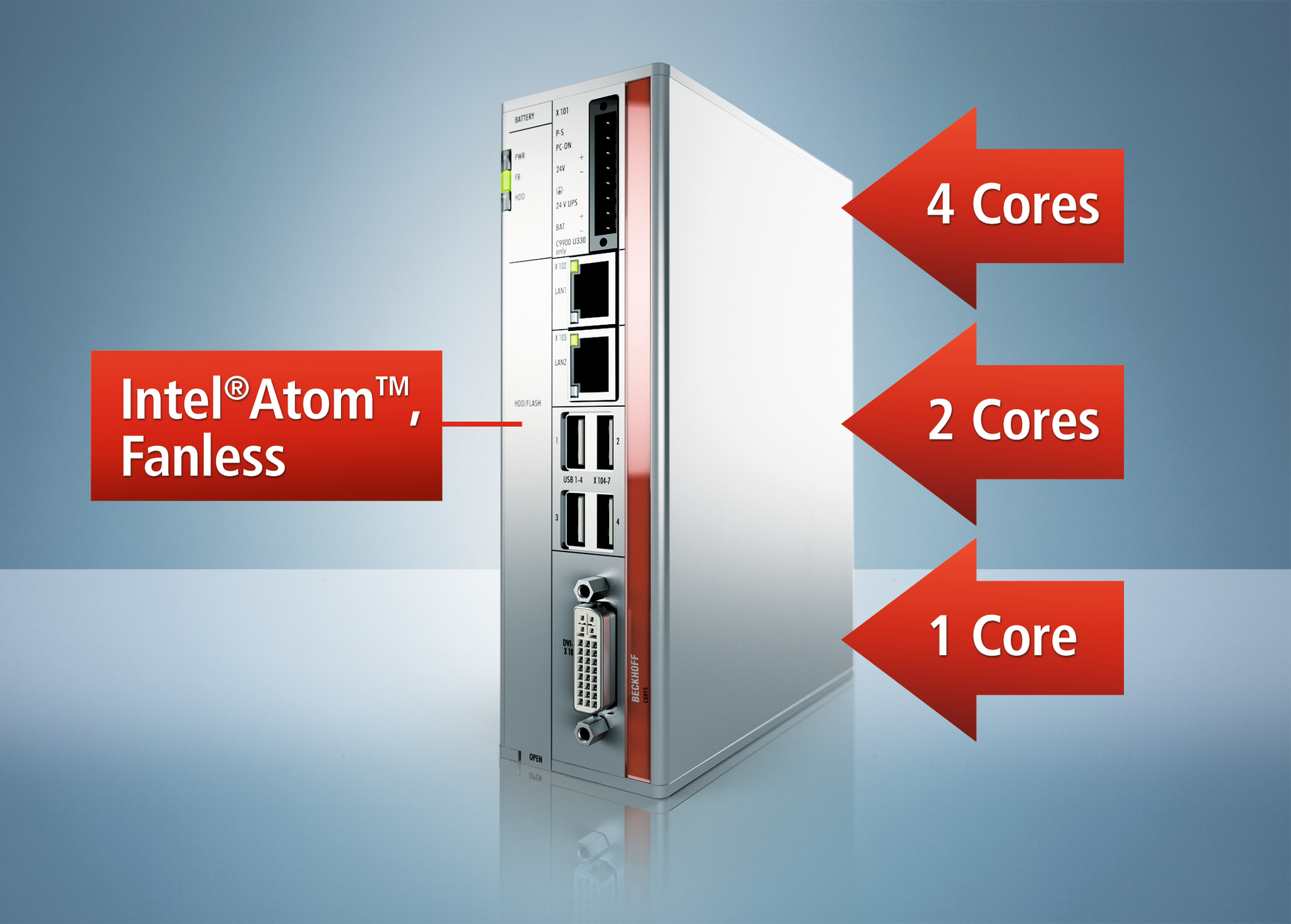

The low heat dissipation of the processors means that the unit does not require a fan, despite its compact size of 48 x 164 x 119 mm (without mounting plate). Available processors include 1.46 GHz, one core; 1.75 GHz, two cores; and 1.91 GHz, four cores. The industrial PC is suitable for automation and control tasks in the medium performance range, but also for motion applications and also applications with more complex graphics requirements. All variants feature 2 GB DDR3L RAM, expandable ex factory to 8 GB; graphic adapter integrated inside the processor, 1 DVI-I connector; on-board dual Ethernet adapter with 2 x 100/1000BASE-T connector; 2 GB CFast card, extended temperature range; and four USB 2.0 ports. Multiple communication port, memory and expansion options are available.
>>For more information on this product, click here
Beckhoff Automation
www.beckhoffautomation.com
952.890.0000
