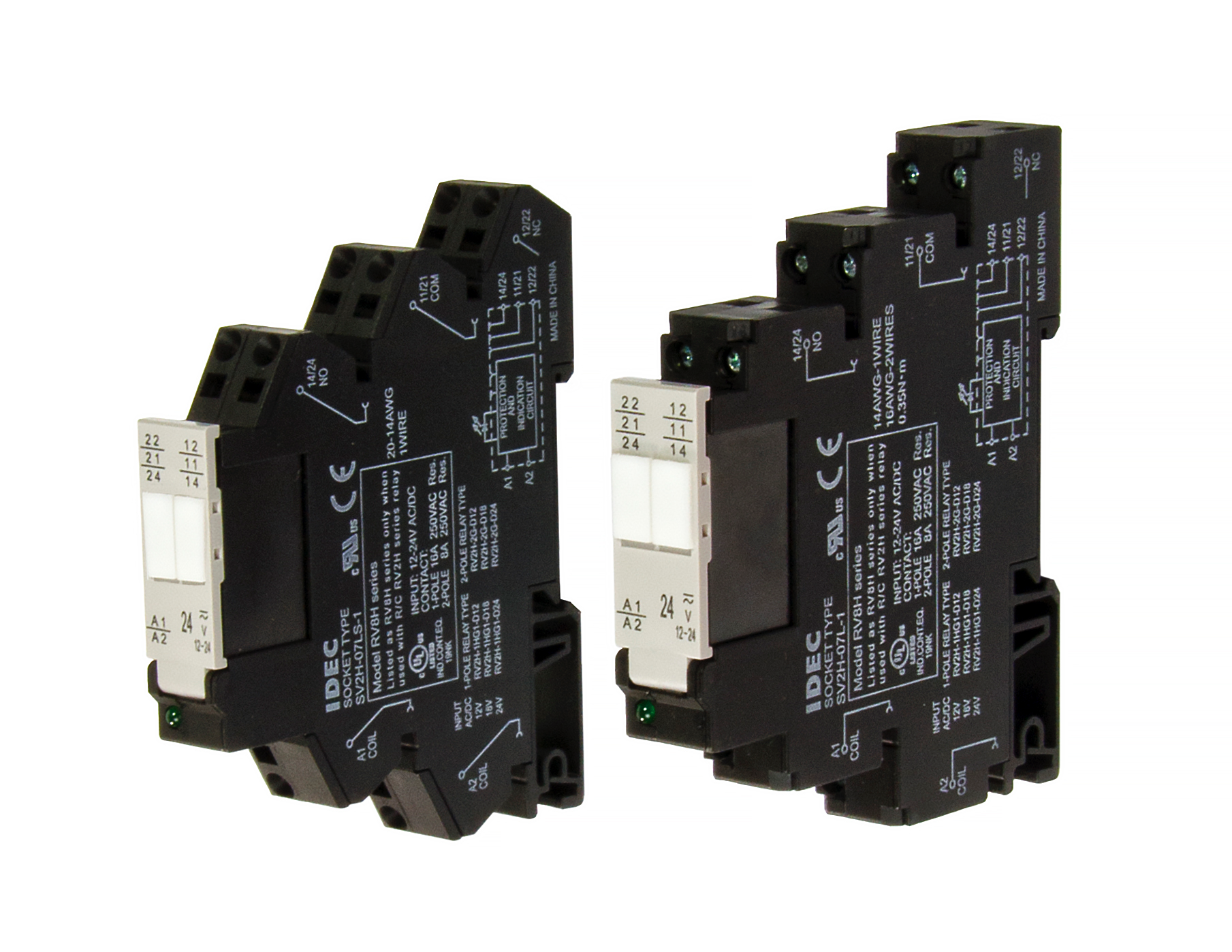

These electromechanical relays measure just 70 mm high, and are suitable for panels with limited room. They work particularly well in higher load switching applications, industrial automation panels with high I/O content, and commercial HVAC panels. In these and other applications, a relay is typically installed between an output from a PLC or other controller and the load to increase switching capacity and protect the output from damage. These relays are rapidly replacing traditional 5 to 10 A general purpose plug-in relays due to their smaller size and lower cost. Relays are available in SPDT and DPDT models, and the DPDT models are supplied with gold-plated contacts. SPDT models are rated up to 16 A and DPDT models are rated up to 8 A. All versions are available with AC or DC input, with input voltages from 5 VDC to 240 VAC. The relays are available pre-assembled in a DIN-mount universal AC/DC socket with built-in surge suppression and a green LED Indicator. The entire socket and relay assembly is UL listed, and a release lever is included for easy locking and removal of the relay.
>>For more information on this product, click here
IDEC Corporation
www.IDEC.com/usa
800.262.4332)
