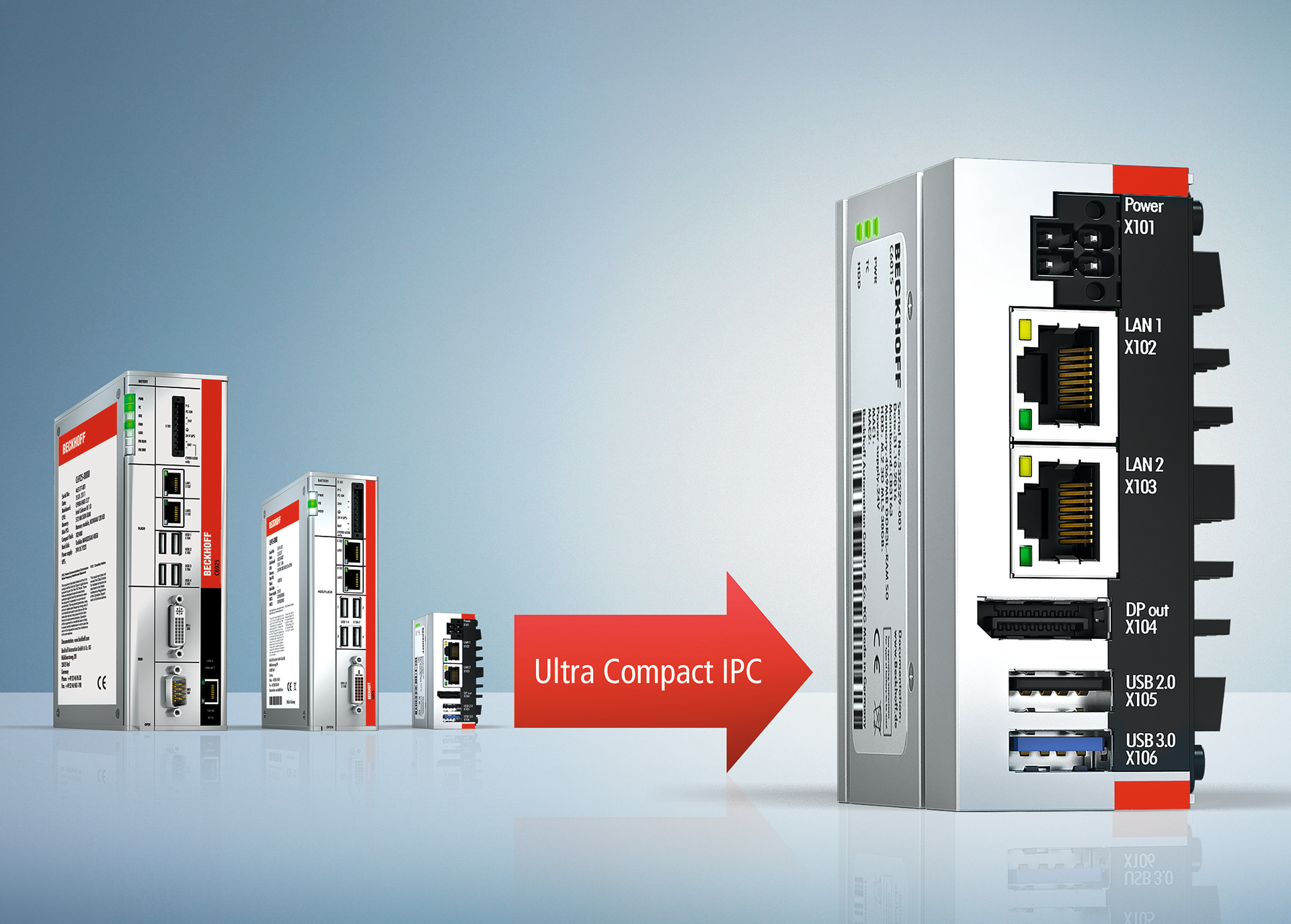

The multi-core IPC measures just 82 x 82 x 40 mm and is one third the size of the company’s C6905, which was previously the smallest control cabinet IPC in the portfolio. The unit features the high computing power of the integrated Intel Atom CPU with up to four processor cores, and is protected by an aluminum/die-cast zinc housing designed for passive cooling and long-term availability. The device also offers a full range of standard features for industrial environments, such as extended operating temperature range up to +55 °C and high resistance to vibration and shock. It has multiple installation options, and can be mounted both vertically and horizontally on the rear wall of a control cabinet or attached to a DIN rail. Even in the tightest installation spaces, this permits various mounting scenarios with flexible orientation. Due to the small dimensions of the device, this represents an important feature: when connecting up to six separate cables, it is crucial with the small design that the connections can be optimally aligned to the cable routing as dictated by the machine layout. The unit features a 30 GB SSD and Windows Embedded Compact 7 operating system, 2 GB DDR3L-RAM (expandable by the vendor up to 4 GB), a display port connection, an on-board Dual-Ethernet adapter with 2 x 100/1000Base-T connection and ports for both USB 3.0 and USB 2.0.
>>For more information on this product, click here
Beckhoff Automation
www.beckhoffautomation.com
952.890.0000
