Industrial PC Saves Space

The C6017 from Beckhoff Automation combines compact design and installation flexibility with an increased variety of interfaces and an integrated UPS.
Related To:
June 3, 2018
Beckhoff's combines compact design, installation flexibility and more interfaces

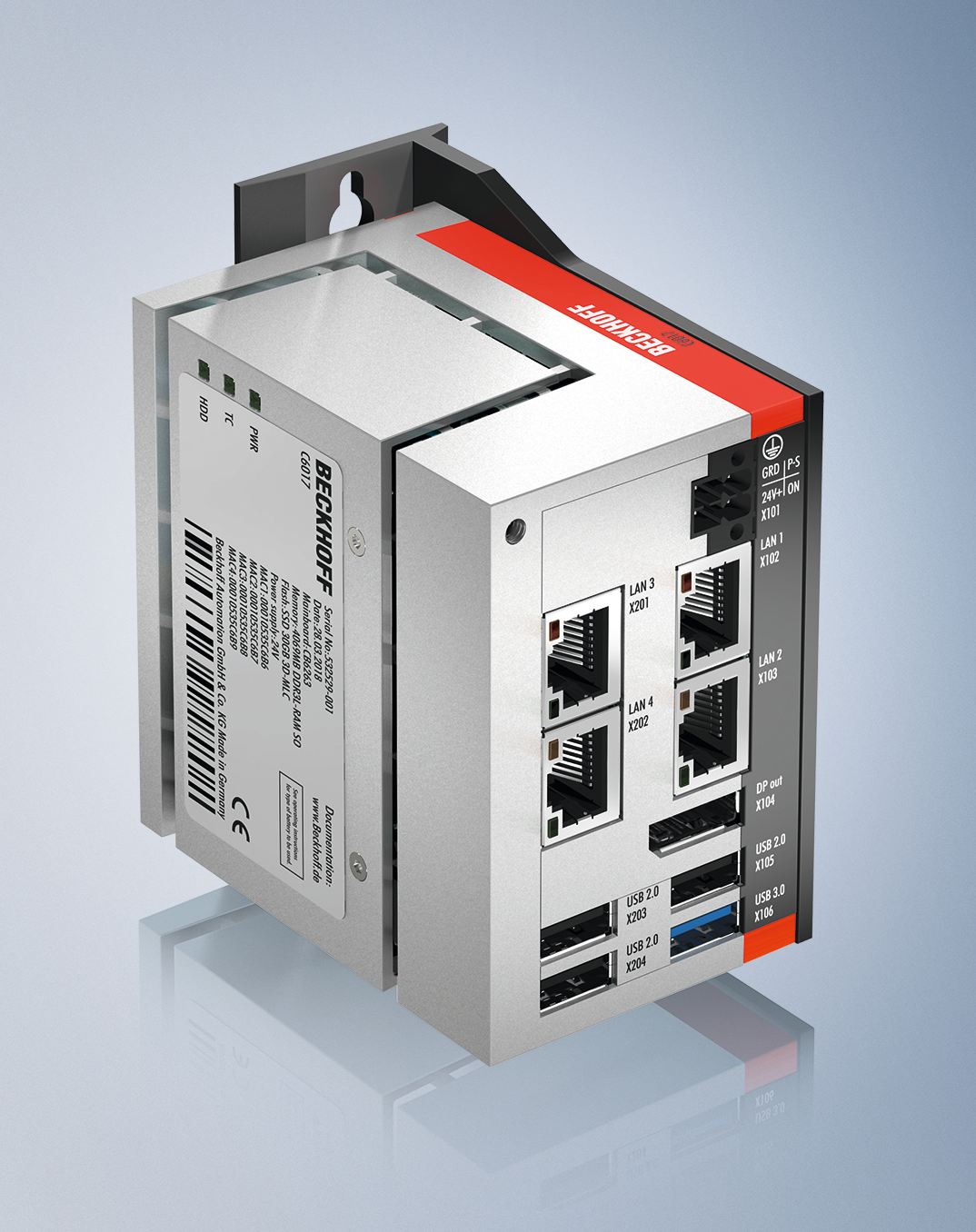

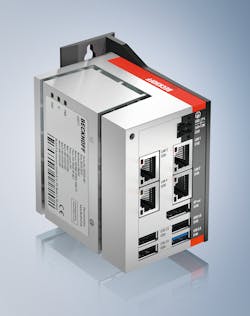

The C6017 Ultra-Compact Industrial PC from Beckhoff Automation

The unit is almost identical in design to the company’s existing ultracompact C6015, but adds features for more connectivity and data security in the event of potential power supply failures. It features DisplayPort connection, onboard dual Ethernet adapter with two 100/1000Base-T connections and USB 3.0 and USB 2.0 ports using two RJ45 and two USB 2.0 interfaces. In addition, an optional capacitive 1-second UPS is integrated, ensuring reliable storage of persistent data in the event of a power supply failure. Dimensions are 82 x 82 x 66 mm, with overall width just 24 mm more than the earlier unit. Equipped with an Intel Atom CPU with up to four processor cores, the passively cooled IPC also features a robust aluminum and die-cast zinc housing. Suggested applications include automation, visualization and communication tasks up to the mid-performance range.

>>For more information on this product, click here
Beckhoff Automation
www.beckhoffautomation.com
952.890.0000
