    HMI for Harsh Environments

    Nov. 12, 2018

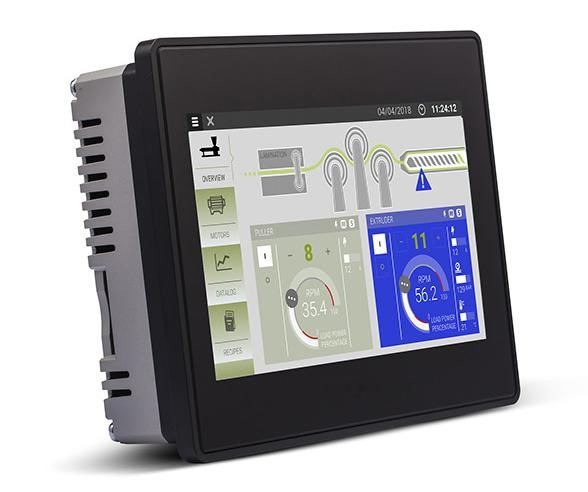

    Exor’s eX700G Series combine a high-performance sunlight-readable display with state-of-the-art connectivity features and top performance in a rugged design.
    Related To: Exor
    Exor’s eX700G Series combine a high-performance sunlight-readable display with state-of-the-art connectivity features and top performance in a rugged design.
    Exor’s eX700G Series combine a high-performance sunlight-readable display with state-of-the-art connectivity features and top performance in a rugged design.

    Intended for IIoT edge applications, the unit features a glass projected capacitive touchscreen and a 7-inch widescreen display with a resolution of 800×480 that are bonded to guarantee high optical performance and resistance in such environments. Mobile runtime is included (requires Mobile V2.8 or higher), and the unit supports Corvine Cloud secure connectivity with full network separation. Other features include an OPC UA Server and Client; optional CODESYS V3 runtime with choice of EtherCAT, PROFINET, Ethernet/IP and POWERLINK; an all-metal enclosure, coated circuit board protection; operating temperature of -20 to +60 °C (-4 to 140 ºF, vertical installation) and operating protection class IP66 (front) and IP20 (rear).

    >>For more information on this product, click here
    EXOR America
    https://exorint.com
    513.874.0900
