High-Speed I/O and Communications Expansion Modules for Micro PLC System

The modules add high-speed I/O and communications functions to AutomationDirect’s BRX Micro PLC line.
Related To:
June 10, 2019
The modules add high-speed I/O and communications functions to AutomationDirect’s BRX Micro PLC line.
High-Speed I/O and Communications Expansion Modules for Micro PLC System

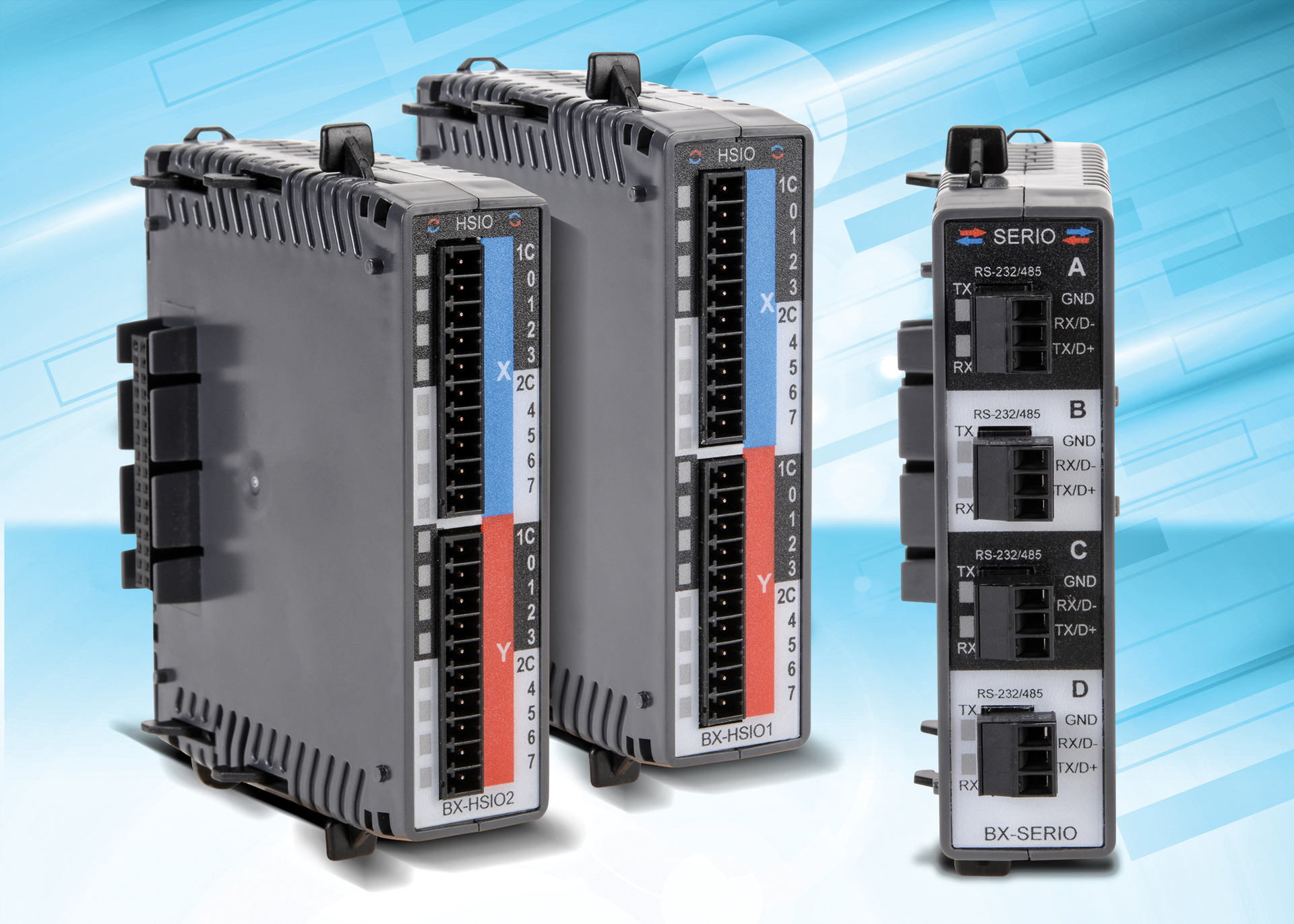

BX-HSIO High-Speed (HSIO) discrete I/O modules are available with eight 12-24 VDC sink/source inputs and either eight 12-24 VDC sink outputs or eight 12-24 VDC source outputs. These modules are capable of up to 250 kHz high-speed input/output signals. The BX-SERIO serial communications module provides an additional four isolated RS-232/RS-485 serial ports. Supported protocols include Do-more! Protocol, Modbus RTU (Master/Slave), K-Sequence, ASCII (In/Out) and DMX512. Data rates are 1200 to 115,200 bps. All expansion modules easily snap onto the side of the micro PLC.

>>For more information on this product, click here
AutomationDirect
www.automationdirect.com
800.633.0405
