    In-Line Vision Inspector for Web Materials

    June 1, 2011

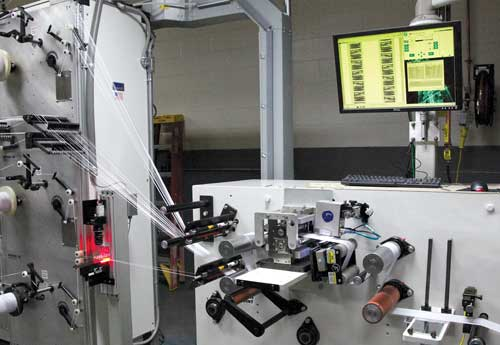

    Vision Inspector Beacon for Web Inspection is designed for in-line materials inspection, defect detection, defect archiving, and real time defect awareness and reporting.
    Aw 459 1106np104 Boulder Spotlight

    The system identifies defects and anomalies such as registration, presence/absence, alignment, color matching and surface irregularities in materials at speeds in excess of 900 ft per minute. Company says it is designed to achieve very high throughput rates with zero false positives. Three-tier architecture is composed of an inspection station, the archive and reporting server (ARS), and the event viewer client (EVC). The inspection station is placed in-line and detects defects. ARS stores defect data and presents it to the EVC for dissemination, review and analysis. System, which can be an enterprise solution that provides data for strategic and tactical operational management of production, includes utilization of standard SQL database for extensible third-party reporting, integration with all major PLCs, support for TTL triggering and expandable metadata.

    Boulder Imaging
    www.boulderimaging.com
    303.604.2368
