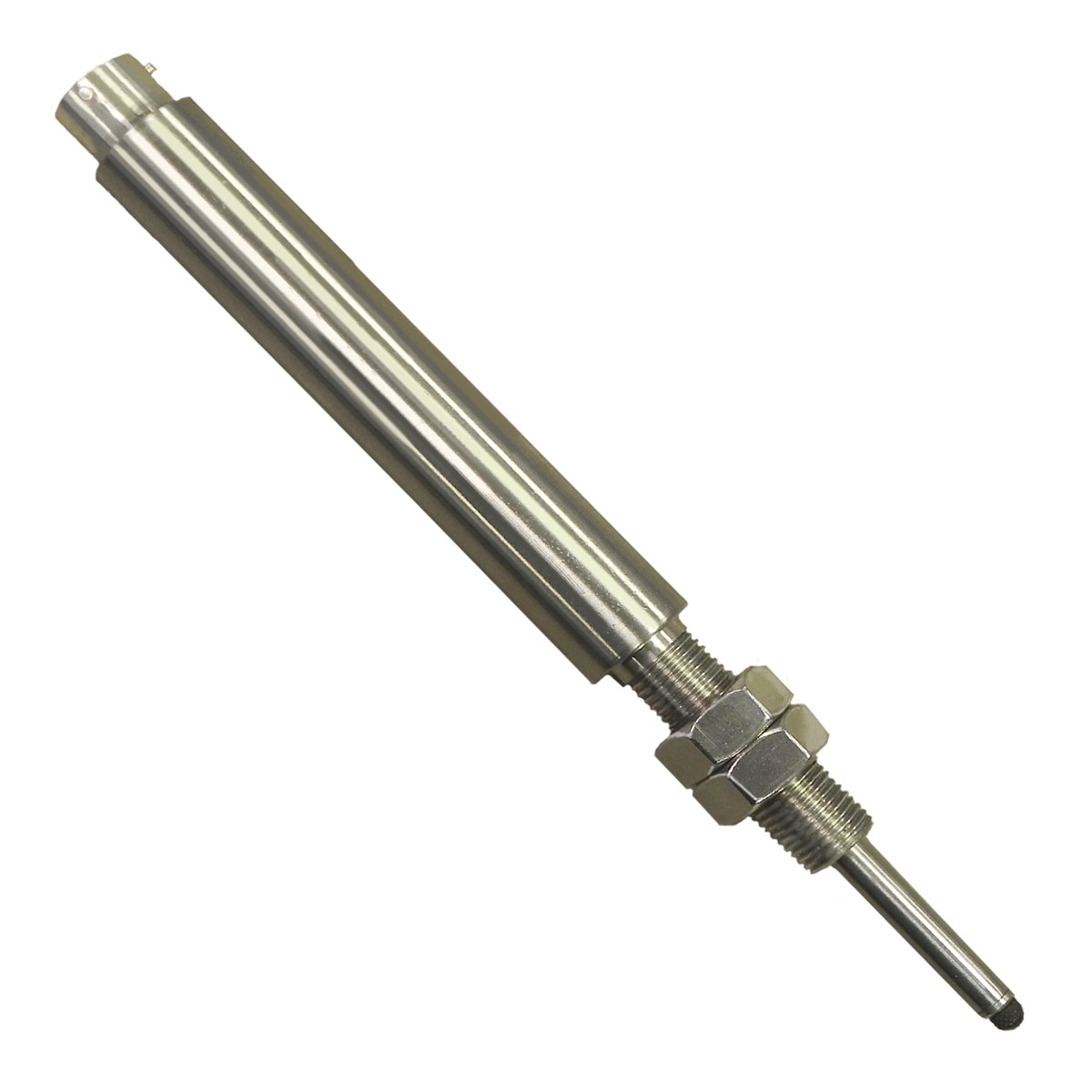

Ruggedized Spring Loaded Inductive Linear Position Sensors

The ILPS-19S Series from Schaevitz uses LVIT technology for dimensional gauging and position measurements in demanding commercial, industrial, and military applications.

Aug 8th, 2019

The ILPS-19S Series from Schaevitz uses LVIT technology for dimensional gauging and position measurements in demanding commercial, industrial, and military applications.

The ILPS-19S Series from Schaevitz uses LVIT technology for dimensional gauging and position measurements in demanding commercial, industrial, and military applications.

With their rugged design, long service life, and excellent stroke-to-length ratio, the sensors are suitable for test stands, test laboratories, automated assembly machines, processing & packaging equipment, robotics, and automotive test applications. Features include measuring ranges from 6 to 100 mm (0.25 to 4 inches); excellent stroke-to-length ratio; lower cost, drop-in replacement for spring loaded LVITs; service life rated to more than 100 million cycles; 19 mm (0.75 inch) diameter stainless steel housing sealed to IP-67; and axial termination with either M12 connector, PT02 connector, or integral cable. The sensors offer a choice of four analog outputs and all include HGSI's proprietary SenSet field recalibration feature.

>>For more information on this product, click here
Harold G. Schaevitz Industries LLC
www.hgsind.com/
248.301.9926
