ProSense Variable Area Mechanical Flow Meters from AutomationDirect

Jan. 15, 2020
AutomationDirect is a distributor offering thousands of industrial automation products for electrical control systems, including PLCs, operator interfaces, AC drives, motors, stepper systems, sensors, motor controls, enclosures and more.

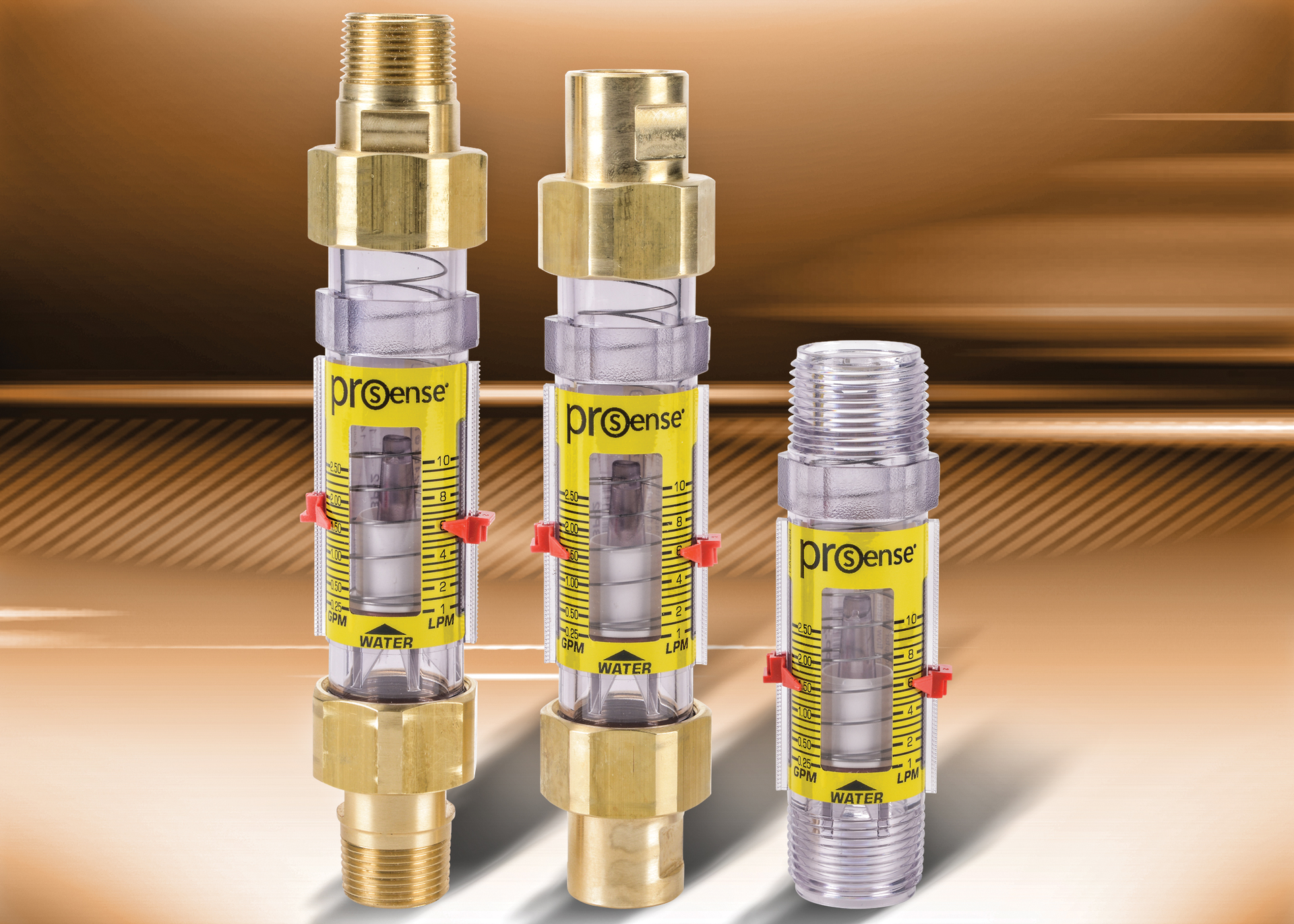

ProSense® FG1 Series mechanical variable area flow meters provide visual indication of flow rate for water or petroleum-based fluids. These meters provide +/-5% full scale accuracy and a repeatability of +/-1%, important for cyclical applications requiring consistent readings. Two adjustable flow limit pointers are available to provide preset indication of high, low, or normal flow rates.

The flow meters are constructed of high-impact polysulfone plastic (body, piston, cone) with brass fittings (1/2 and 3/4 NPT models). FG1 series flow meters are available with 1/2", 3/4" or 1" NPT process connections and have easy-to-read flow scales in both gallons per minute (GPM) and liters per minute (LPM). Measurement ranges are from 0.25 - 2.5 GPM (1 to 10 LPM) to 4 - 28 GPM (20 to 100 LPM).

FG1 series flow meters from AutomationDirect start at $96.00 and have a 1-year warranty.

Learn more by visiting: www.automationdirect.com/variable-area-flow-meter
