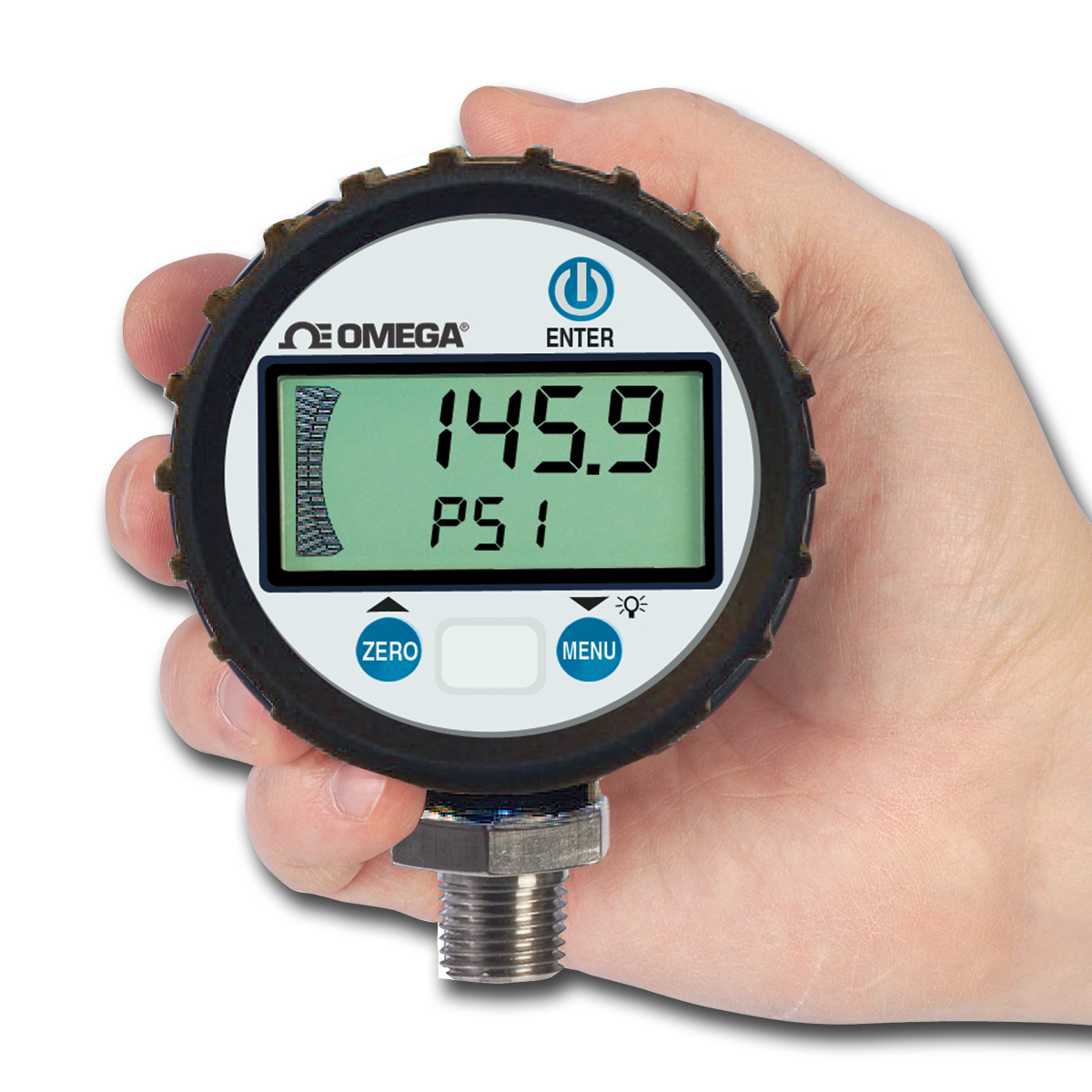

Omega Engineering: General Purpose Digital Pressure Gauge

The DPG8001 series features a five digit LCD display with large digits, 20 segment bar graph display, user-selectable engineering units, min/max readings, tare function standard and environmentally protection to NEMA 4X (IP65).
Related To:
Feb. 4, 2013
Aw 14371 1301np Omega2

These all-stainless steel general purpose digital pressure gauges have ranges from vacuum to 25,000 psi (30 inHg to 1724 bar), and rated accuracy of 0.25% terminal point, and come with all stainless steel wetted parts. Ranges are from vacuum to 25,000 psi (30 inHg to 1724 bar). Media temperature range is -20 to 60 ºC (-4 to 140 ºF), while operating temperature range is -20 to 60 ºC (-4 to 140 ºF). Battery life from two included AA alkaline cells is 2000 hr. minimum. Units are aimed at chemical, automotive and petrochemical industries, and suggested applications include HVAC and refrigerant pressure tests.
