Omega: Thermal Imaging Camera

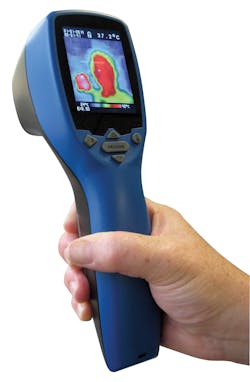

The OSXL-TIM3 is a fully automatic thermal imaging camera with high level measurement and accuracy.

Aw 88508 1510np Omega

The unit is focus free, displays the thermal image and temperature and provides 32 x 31 thermal image resolution. Infrared measurement range is -20 to 250 °C (-4 to 482 °F) and infrared accuracy (Tamb=20~26°C) is ±2% of reading, or 2 °C (4 °F), whichever is greater. Thermal sensitivity is 0.1 °C (32.1 °F) The camera supports an 8G micro SD card (SD card included), and can store up to 60,000 images/GB. Reporting software for image review and reporting of the details on the saved images (compatible with Windows 7 & 8) is included. Suggested applications include inspection and diagnostics in factory automation, process control, building HVAC, solar power generation and furnace and oven monitoring.

>>For more information on this product, click here
Omega Engineering, Inc.
www.omega.com
888.826.6243
