Smart Flow Instruments

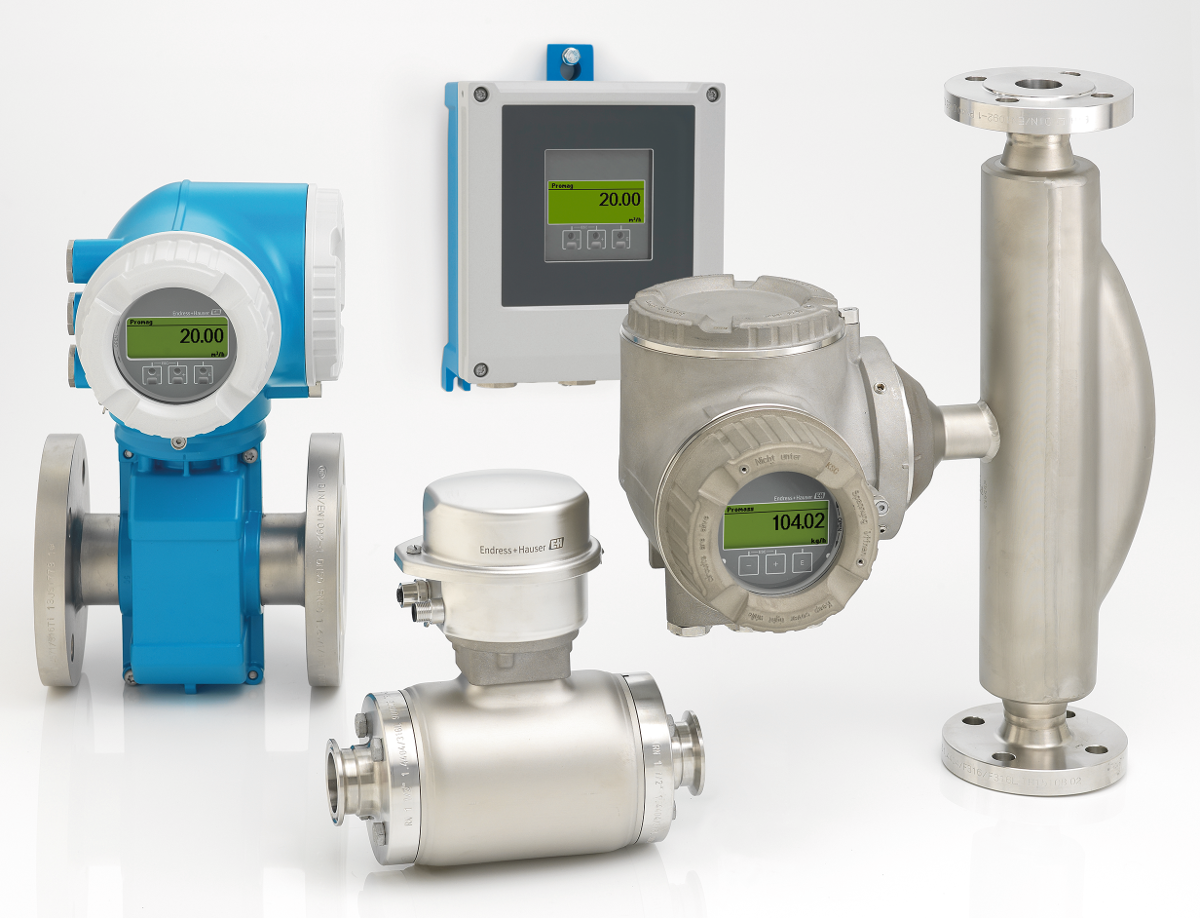

The Proline 300/500 from Endress+Hauser have been optimized for maximum safety, enhanced measurement quality and device accessibility.

Aw 113237 1701np Eh

Proline Promass Coriolis mass flowmeters are available in 11 models ranging in sizes from 1/24 to 14 inches in diameter, for measuring flows up to 100,000 tons per day. Proline Promag flowmeters are available in three models in sizes from 1/12 to 78 inches for volume flows up to 634 million gallons per day. Both types are available in models suitable for high temperatures, corrosive fluids, hygienic and sterile process applications. All units connect to control systems via 4-20 mA HART, WirelessHART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus, EtherNet/IP or PROFINET. Both families provide access to users via the device’s display, a web server, a wireless LAN, handheld devices, asset management or process automation solutions, and Fieldbus protocol. Each provides fast commissioning, in-situ device verification during operation, continuous self-diagnostics and automatic on-board data storage. Housings are available in aluminum, hygienic or severe service stainless steel. All instruments have custody transfer approvals and meet the requirements of cCSAus, ATEX, NEPSI, INMETRO, EAC, IEC/EN 61326, NAMUR NE21, and EU and ACMA directives. They are also approved for use in SIL 2 and SIL 3 applications.

>>For more information on this product, click here
Endress+Hauser, Inc.
www.us.endress.com
888.363.7377
