Long Stroke Heavy Duty LVIT Inductive Linear Position Sensors

The LRL-27 Series of contactless linear position sensors from Alliance Sensors Group are designed for factory automation systems and a variety of heavy duty industrial or commercial applications.

2004np Alliancesensors

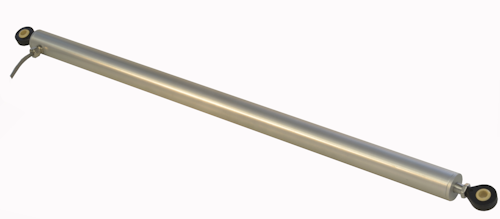

Suggested applications include solar cell positioners, wind turbine prop pitch and brakes, material chute or gate positioners off-road or agri-vehicles, robotic arm position feedback, and packaging equipment. Operating from a variety of DC voltages, the series offer a choice of four analog outputs, and all units include the company’s SenSet field scalability feature. All units in the series feature Linear Variable Inductance Transducer technology, contactless operation that prevents wear out from dither or cycling, five nominal ranges from 250 to 450 mm (10 to 18 inches), excellent stroke-to-length ratio, and a 27 mm (1.05 inch) diameter anodized aluminum housing sealed to IP-67. A radial cable exit version comes with swivel rod eye ends, while axial termination versions are available with either M-12 connector or 1-m cable. Also available are the LR-27 for shorter stroke applications, LR-19 series for applications where a short length and smaller diameter body is required, and the spring loaded LRS-18 series.

>>For more information on this product, click here
Alliance Sensors Group
http://alliancesensors.com/
856.727.0250
