Temperature Calibrator for Long Sensors

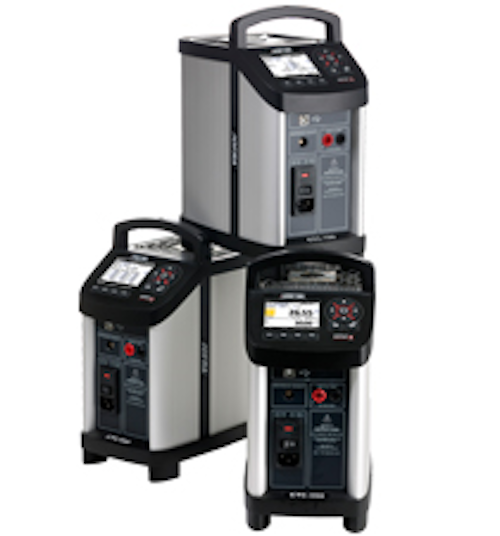

The CTC-652 from Ametek STC is the tallest of JOFRA’s CTC Series calibrators with a 200 mm insert.

2004np Ametekstc

The insert provides the unit with an immersion depth of 190 mm, making it suitable for calibrating difficult sized sensors, like long capillary sensors found at transformer stations, turbine steam temperature sensors at power plants, and the exhaust gas temperature sensors in the maritime industry. The calibrator offers a temperature range of 28 to 650 °C (82 to 1202 °F), stability to ± 0.05 °C (± 0.09 °F), and one-year accuracy of ± 0.65 °C (± 1.17 °F) for the total temperature range. MVI circuitry ensures stability despite mains supply variations. The unit includes a crisp color display with an “advanced simplicity” user interface. Popular functions such as automatic switch test and auto stepping are available with special one-key-one-function buttons. Important functionality, like manual calibration with pre-defined temperature points, calibration due notifications, and complete pre-defined calibration processes are also easy to access through the multi-information interface. Colored safety icons make it quick and easy to detect a hot or cold calibrator helping to reduce injuries, while a stability icon and time estimator help users track the current status.

>>For more information on this product, click here
Ametek STC
https://www.ametekstc.com
800.444.1850
