The ILPS-18S Series Spring Loaded LVIT Linear Position Sensor Economical High-Performance Gauging Probe

The ILPS-18S Series of spring-loaded inductive linear position sensors is designed for dimensional gauging and position measurements in commercial, industrial, and military applications.

This content was submitted directly to this website by the supplier.

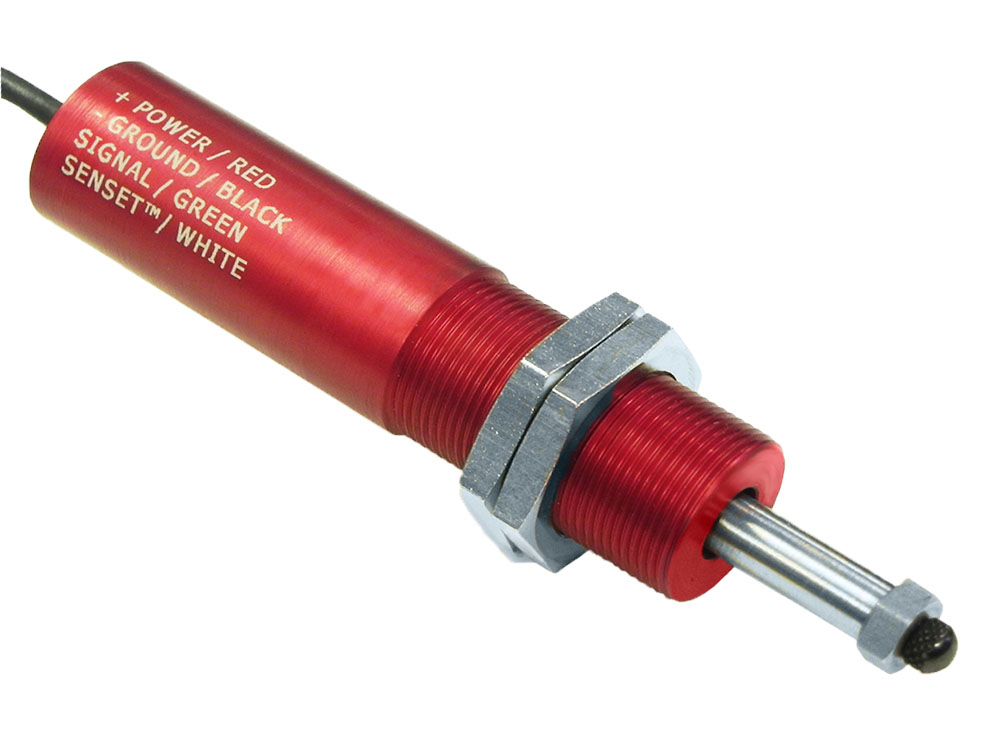

Ilps 18 S Lvit Inductive Linear Position Sensor Spring Loaded Side

Harold G. Schaevitz Industries LLC (HGSI) has expanded its sensor product offering by adding a line of ILPS-18S Series Spring Loaded Inductive Linear Position Sensors using LVIT Technology.  The ILPS-18S was designed as an economical solution for dimensional gauging and position measurements in commercial, industrial, and military applications.  With their compact design, long service life, and excellent stroke-to-length ratio, ILPS-18S sensors are ideal for test stands, test laboratories, automated assembly machines, processing and packaging equipment, robotics, and automotive test applications.

ILPS-18S Features:

  • Measuring ranges from 0.5 to 4 inches  (13 to 100 mm)
  • Excellent stroke-to-length ratio
  • Lower cost replacement for spring loaded LVITs
  • Long service life, rated to over 100 million cycles
  • 0.75 inches (19 mm) diameter threaded aluminum housing sealed to IP-67
  • Axial termination with either M12 connector or integral cable

The ILPS-18S series offer a choice of four analog outputs and all include HGSI's proprietary SenSet™ field recalibration feature.
