Cone Drive Adds Multiple Sizes of Servo Motors

The HP Servo is available in seven sizes from 3” to 8” center distance and with backlash ranging from 19 to zero arc minutes.

This content was submitted directly to this website by the supplier.

Aug 6th, 2013

Aw 17426 Untitled 0

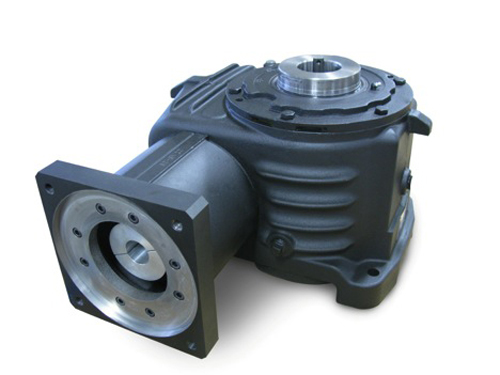

As servo motor capacity increases, Cone Drive is meeting the needs of the marketplace by offering reducers capable of higher torque demands. Only in the Model HP will you get true double-enveloping worm gear technology, unsurpassed in the market where both performance and positional accuracy are demanded.

The HP Servo is available in seven sizes from 3” to 8” center distance and with backlash ranging from 19 to zero arc minutes.
If you have questions about how your application can benefit from the HP Servo, please contact Cone Drive at 1-888-994-2663.

>>For more information on this product, click here
