Brush DC Motors

Athlonix 22DCP motors from Portescap offer an optimized price-to-performance solution for multiple applications.

Dec 31st, 2015

Aw 90953 1512np Portescap

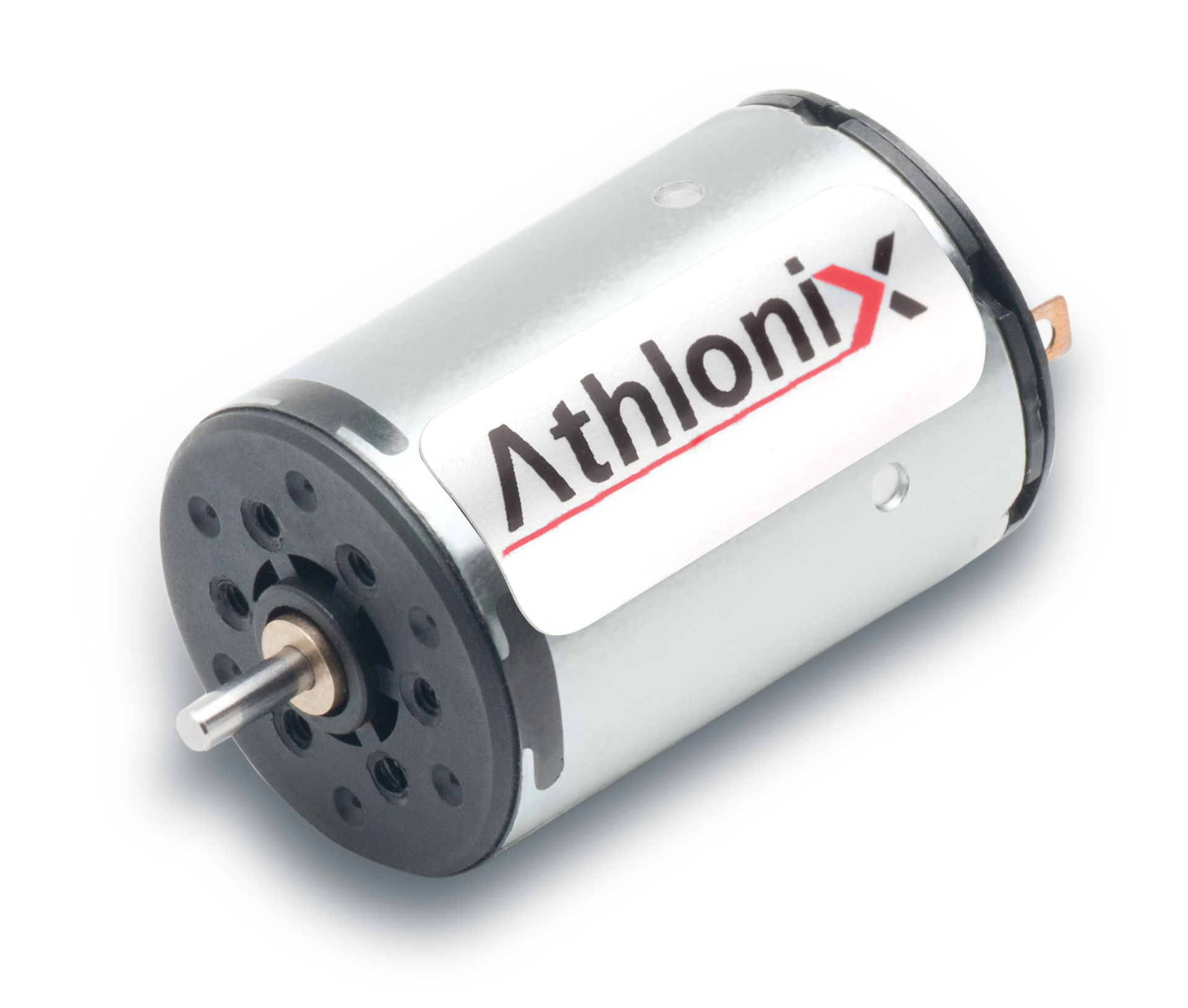

With a 22 mm diameter, the 22DCP motor features an energy efficient coreless design with an optimized self-supporting coil and magnetic circuit that delivers maximized power density and sustained endurance over the life of the motor. Motors are available in two variations, precious metal commutation and graphite commutation with Alnico magnet inside. The constant force spring design for carbon brush ensures consistent performance. An REE (Restriction of Electro Erosion) coil, available option, ensures extended life of the motor. With maximum continuous torque up to 6.5 mNm and higher stall torque than similar comparative motors, the motors are suitable for use in applications such as medical and industrial pumps, gas analyzers and security & access and power tools. Component standardization and design modularity ensures quick customization capability for samples across various applications. The motors are compatible with encoders and gearheads of various sizes and ratios and are also available on our online motor configurator MotionCompass. They are manufactured in an ISO certified facility, and are RoHS compliant.

>>For more information on this product, click here
