Voice Coil Motor with Internal Shaft and Bearing Providess 63.9 lbs of Continuous Force

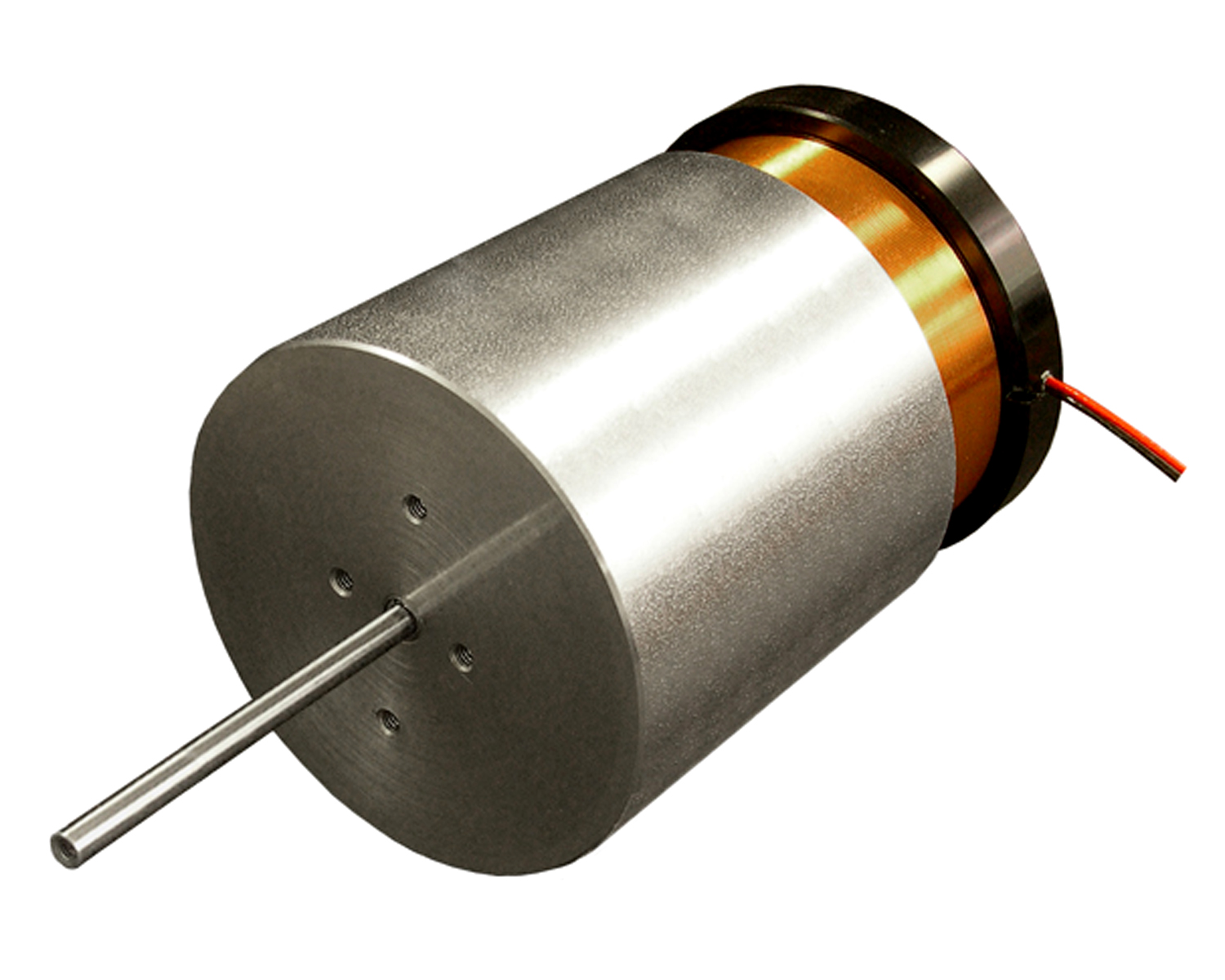

The GVCM-095-089-03 from Moticont features a continuous force of 63.9 lbs (284.1 N) and 202.0 lbs (898.4 N) of peak force at a 10% duty cycle.

Oct 3rd, 2019

Voice Coil Motor with Internal Shaft and Bearing provides 63.9 lbs of Continuous Force

Voice Coil Motor with Internal Shaft and Bearing provides 63.9 lbs of Continuous Force

The linear voice coil motor (aka linear DC motor) is guided by a long-life plain bearing that can allow side loads up to 3 lb (13.5 N), while the precision ground 0.236-inch (6.0 mm) diameter shaft with an internal thread has a stroke length of 0.5 in. (12.7 mm). Features include high speed, high acceleration/deceleration, zero backlash, high accuracy, high repeatability, and a high resistance to side force in either direction, in a housing measuring just 3.75 in. (95.3 mm) dia. x 3.5 in. (88.9 mm) long. The housing and coil ends of the motor have threaded mounting holes for easy integration into new and existing applications. Suggested applications include clamping, work holding, sorting equipment, assembly, medical devices, antenna positioning, testing, slide actuators, shutters, doors, valve actuation, wafer handling, and optical focusing.

>>For more information on this product, click here
Moticont
www.moticont.com
888.785.1804
