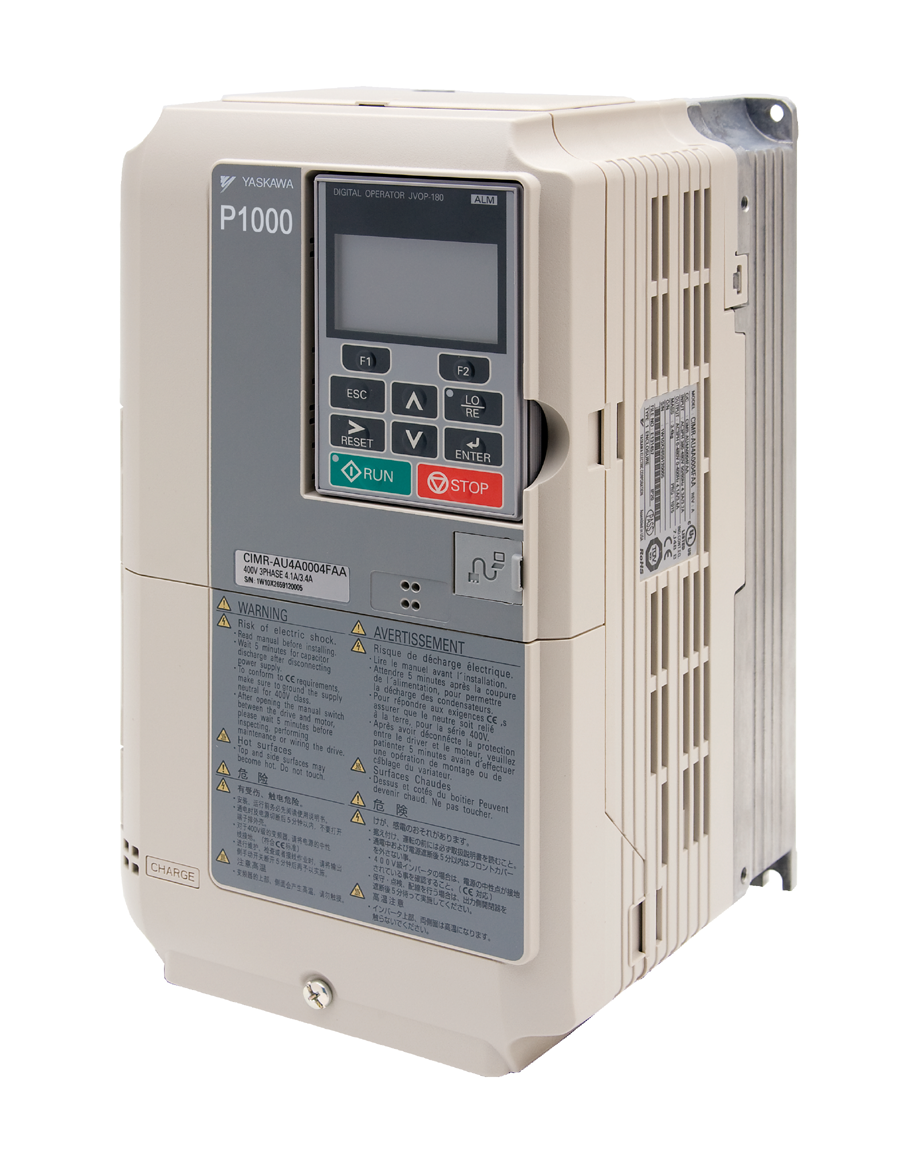

Yaskawa America, Inc: Variable Speed Drive Handles Up to 500 Hp

The P1000 drive provides simple, reliable, cost-effective control for variable-torque loads through 500 hp.
Related To:
Sept. 1, 2012
Aw 11762 1208np Yaskawa

Intended for industrial fans and pumps, the drive will be available with outputs 1000 hp later this year. Features include user-friendly configuration tools, including a multi-language LCD display with a real-time clock, parameter storage, fan and pump application presets, and a portable USB copy unit. DriveWizard software delivers configuration, monitoring, and trending functions enhanced by direct connectivity through the drive's USB port. The drive also offers three expansion ports for additional I/O, feedback, and network communications, including DeviceNet, EtherNet/IP, Modbus TCP/IP, Profibus-DP, PROFINET, BACnet, and LonWorks. All materials used comply with RoHS. The drive is available in 200-240 VAC three phase 50/60 Hz (up to 175 HP), 380-480 VAC three phase 50/60 Hz (up to 500 HP), and 500-600 VAC three phase 50/60 Hz (up to 250 HP) ratings. All ratings are available in a flange configuration that allows for mounting the drive with its heat sink out the back of any Type 12 enclosure. In addition, the drive carries agency certifications for all major geographical regions.

>>For more information on this product, click here
