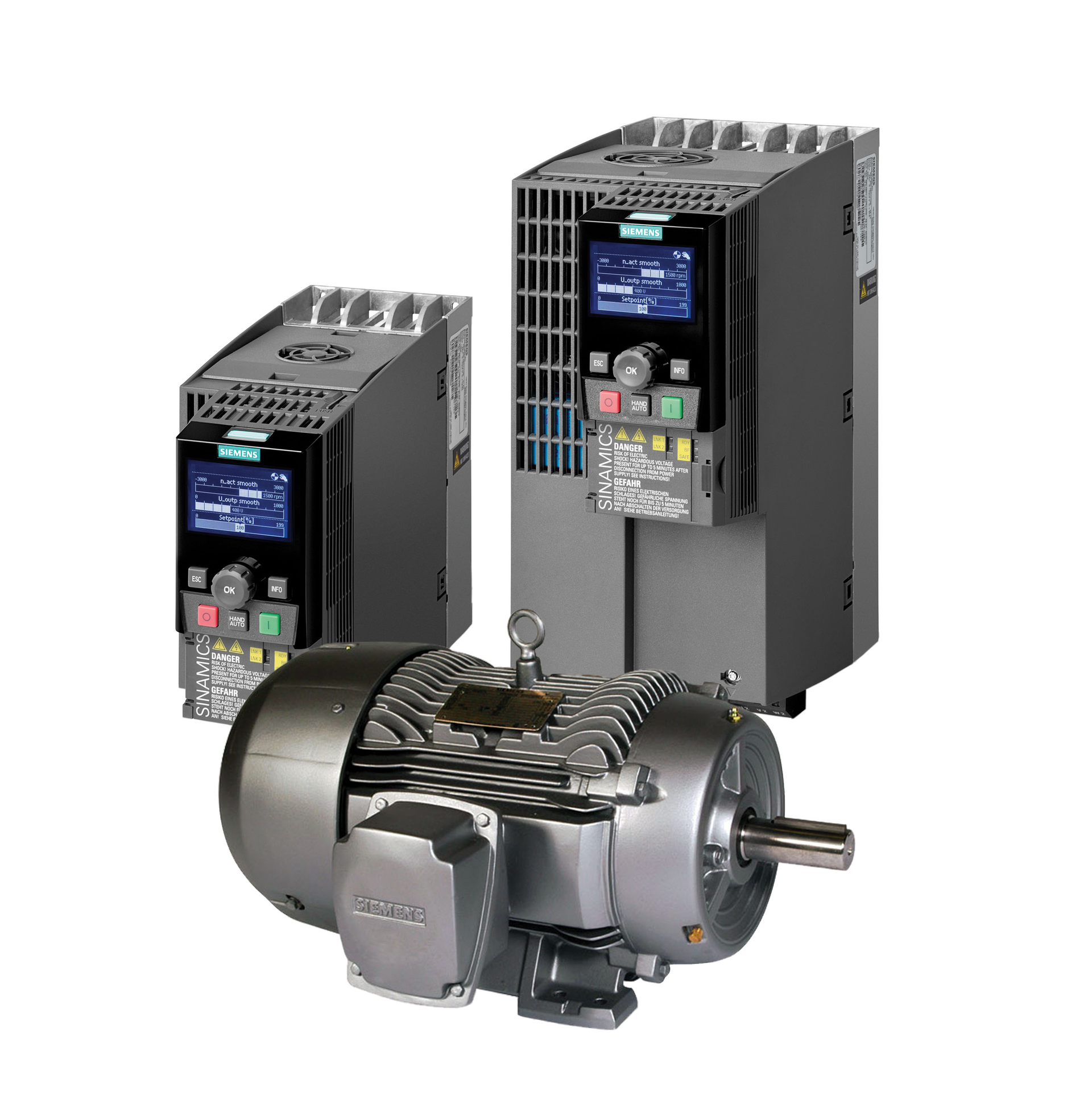

Choosing from a pre-determined list of motor/drive combinations, the user simply makes the selection best suited to the application. The motor and drive are packaged on a single pallet, shipped and invoiced together. The motor and drive combinations are power-matched for 480 V high-overload operation through a 20 hp range, with I2T protection from thermal damage provided as a standard in both the motor and the drive components. The company's Intelligent Operator Panel (IOP) is included with these packages, allowing easy step-by-step drive start-up. Application macros are provided in the Sinamics G120C drive for easy installation and wiring; the terminals are pre-assigned at the factory and the parameters are automatically set. The SIMOTICS SD100 motors are severe-duty TEFC units that meet NEMA Premium efficiency. They are cast iron with inverter duty ratings in a 4:1 speed range for constant torque and 20:1 speed range for variable torque. Communications selections include RS-485 with USS and Modbus protocols. A Profibus variant is also offered.

>>For more information on this product, click here

Siemens Industry
www.siemens.com/us
800.241.4453
