Rockwell Automation: Compact AC Drives

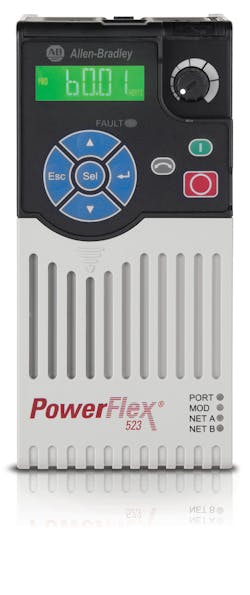

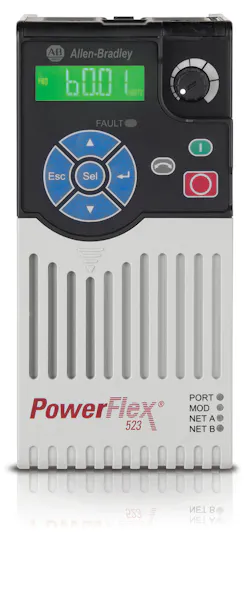

The Allen-Bradley PowerFlex 523 has flexible features that help users be more competitive.

Aw 19527 1311np Rockwell

Suitable for builders of simple stand-alone machines, the drive balances user needs for "just enough" control with a design that lowers the total cost to design, develop and deliver machines. A standard USB connection can be used for uploading and downloading drive-configuration files; the drive can also be programmed through its user interface, which displays data on the drive's LCD with scrolling QuickView text and detailed explanations of parameters and other codes. The HIM also has multiple language options to address global needs. Unique to the this series of AC drives, AppView and CustomView tools help speed up configuration by providing groups of parameters for common applications and by allowing users to save their settings to new parameter groups. These tools can be easily accessible via the HIM, as well as configuration software tools. A dual-port EtherNet/IP adapter is optional. The drive has a power range of 0.25 hp (0.2 kW) to 15 hp (11 kW) and motor-control options, including volts per hertz, sensorless vector control and Economizer mode in sensorless vector control.

>>For more information on this product, click here
