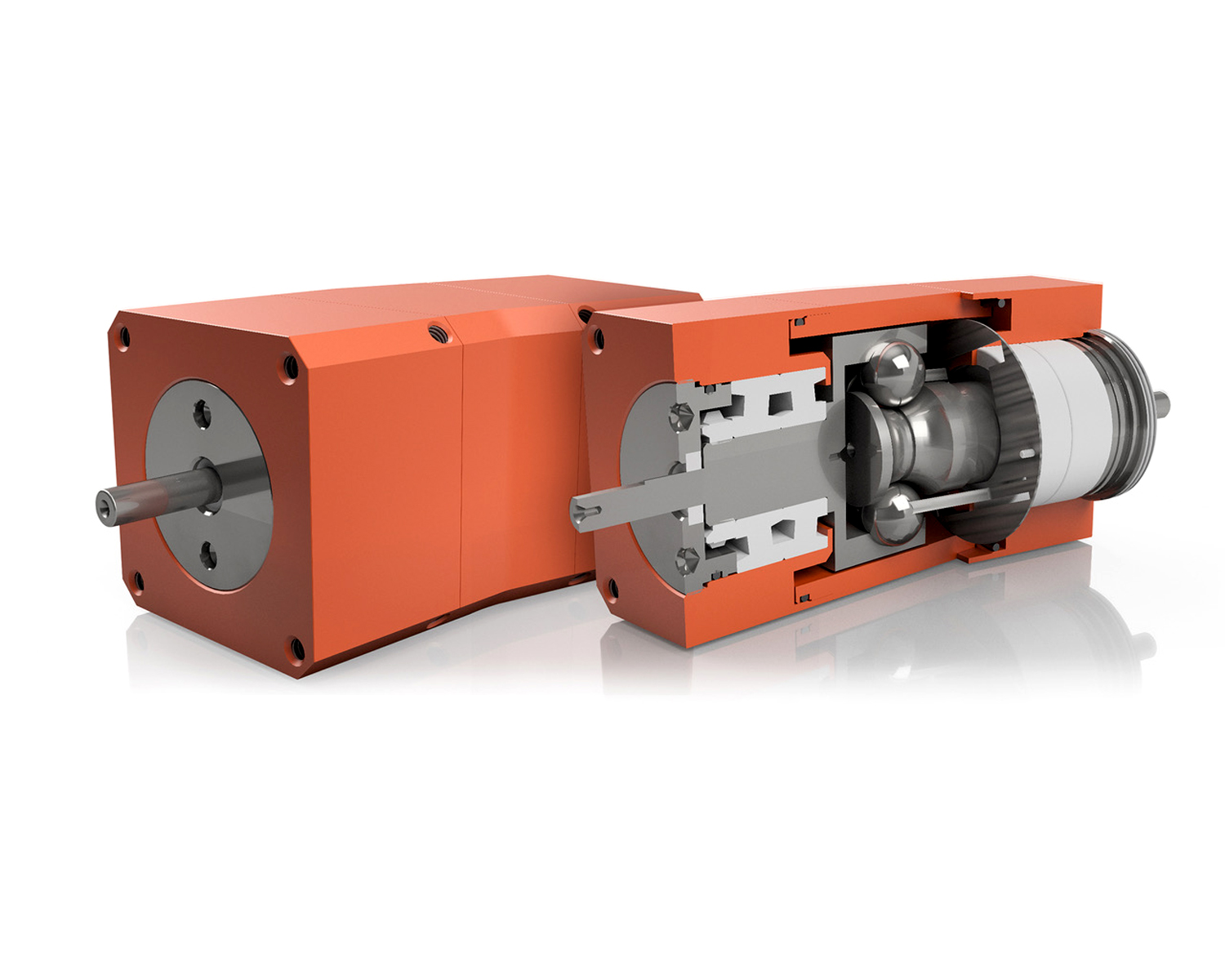

The MAR-17-1-2.1 and MAR-23-1-2.1 1-way traction drives from Rolling Motion have only six moving parts and typically last three times longer than conventional gearboxes.
The MAR-17-1-2.1 and MAR-23-1-2.1 1-way traction drives from Rolling Motion have only six moving parts and typically last three times longer than conventional gearboxes.
Using an engineered traction fluid with a coefficient of friction of just 0.1 to 0.12 and with no metal to metal contact, these high efficiency drives generate up to 72% less heat after 24 hours of continuous operation, Additionally they create up to 38% lower dB at 3000 rpm than conventional gearboxes. Even though there is no metal to metal contact there is no slippage or lost motion between the input and output shafts. The MAR17-1-2.1 traction drive is designed for speeds to 3600 rpm with 10 to 20 in/lbs. of torque, and the MAR-23-1-2.1 traction drive is rated for 3600 rpm with 20 to 30 in/lbs. of torque. Applications for the drives, which can operate in explosive environments (i.e. zone 1 and 21), include pumps, blowers, fans, turbo and super chargers, conveyers, HVAC systems, medical applications, and other power transmission and motion applications.
>>For more information on this product, click here
Rolling Motion Industries
www.rmidrive.com
860.846.0530
