Glow Wire Compliant Power Relays

Fujitsu's low-profile power relay series is designed for safety, rated from 1.5 to 110V, and is available with either standard (530mW and 550mW) or high (400mW) sensitivity.

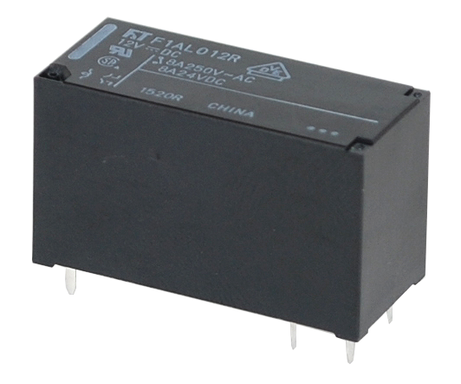

1 Fujitsu Low Profile Glow Wire Compliant Power Relay Series

The DPST/DPDT 5A PCB power relay series meets glow-wire test requirement standard IEC/EN60335, which addresses the safe operation of consumer and commercial electrical appliances. The low-profile (16.5mm) FTR-F1-GW relay series is rated from 1.5 to 110V. Designed for safety, it features a reinforced insulation construction, 8mm minimum insulation distance between coil and contact, a surge strength of 10,000V, and a dielectric strength of 5,000V AC for extended flammability protection. The plastic, sealed relay measures 12.8Lx29Wx16.5Hmm and weighs 12.0g. It is available with either standard (530mW and 550mW) or high sensitivity (400mW) coils and has an operating temperature range of -40° to +75° C. Typical applications include factory automation equipment as well as power protection equipment and solar panels.
