    Cost-effect Corrosive Fluids Flowmeter

    Feb. 3, 2009

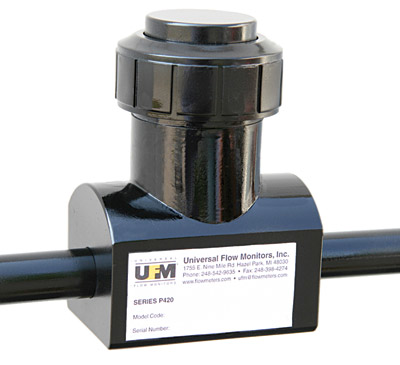

    The P420 Series plastic, vortex-shedding flow rate transmitters are designed for cost-effectiveness in processing corrosive fluids, water, brine and low-viscosity fluids in water treatment, chemical and desalination applications.
    Aw 3254 0901 Ufm
    The P420 Series meets requirements for an inexpensive flow rate transmitter without moving parts that can stick, bind or coat when processing water or corrosive fluids. The Series includes models with wetted parts entirely of PVC (polyvinyl chloride) or CPVC (chlorinated polyvinyl chloride) for greater heat resistance. P420 vortex shedding meters with CPVC body, sensor and bluff can transmit hot water or other fluid with maximum operating temperature of 180°F, compared to a maximum 140°F with PVC units. CPVC transmitters can accommodate higher maximum operating pressures than PVC units at temperatures of 80°F to 180°F. Both CPVC and PVC units are offered in five pipe diameters providing a flow range from 12 to 200 gallons per minute.Universal Flow Monitors Inc.www.flowmeters.com248.542.9635
