Enhanced Panel Meter

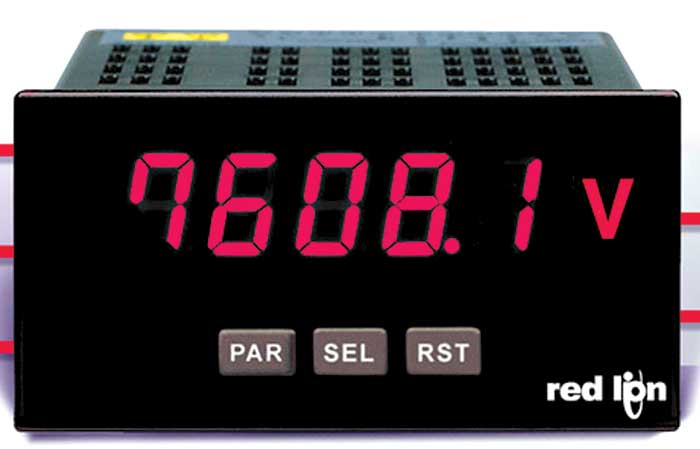

The Paxla, an extension of the vendor’s series of Pax Lite panel meters, is the first model featuring control capability, by adding two Form C relays capable of switching up to 5 amps.

May 7, 2008

The panel meters can accept DC current, DC voltage or process input signals, scaling them to a desired readout for a wide range of applications. The panels feature a 5-digit, 0.56-in.-high red LED display with programmable scaling and decimal points. In addition, its newly designed universal power supply accepts 50 to 250VAC or 21.6 to 250VDC. A 24VDC excitation output is available for increased application flexibility. The front panel buttons can be disabled through a user input setting. The panel meters meet CE requirements and features NEMA 4X/IP65 sealed front bezels. Red Lion Controls Inc.www.redlion.net717.767.6511
