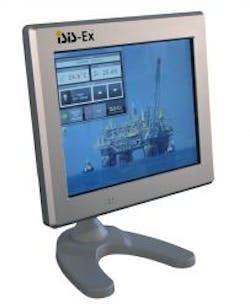

The iSiS1302 is now ATEX, IECEx and AEx certified.
The unit combines light weight with a 19-inch 1000 NIT sunlight-viewable capacitive touch screen, while the toughened glass covering continues to operate despite grease and dirt and without suffering any of the hazy effects of a resistive overlay. Weighing just 27 lbs, the HMI is easy to carry and transport, and at just 3 inches deep it fits into tight spaces. The unit is ingress protected to IP66 /NEMA 4X and meets demanding shock and vibration specifications. An operating temperature range of -40 °C to 60 °C is standard, along with Ethernet and Wi-Fi, a choice of operating voltages, remote telemetry, built-in diagnostics, clean screen mode and more. Approvals include ATEX, IECEx and AEx certification; Ex nA IIC T4 Gc; Ex tc IIIC T135°C Dc IP66; North America (Gas) C1 D2 ABCD T4; North America (Dust) Cll D1 EFG T135°C; North America IFibre) Clll; North America (Type) 4X; Canada (Gas) Ex nA llC T4; Canada (Dust) DIP A21 T100°C IP66; AEx (Gas) C1Z2 AEx nA llC T4 and AEX (Dust) Z21 Ex tb lllC T100°C IP66.
>>For more information on this product, click here
