Automation Systems Interconnect, Inc: RJ45 splitter interface module

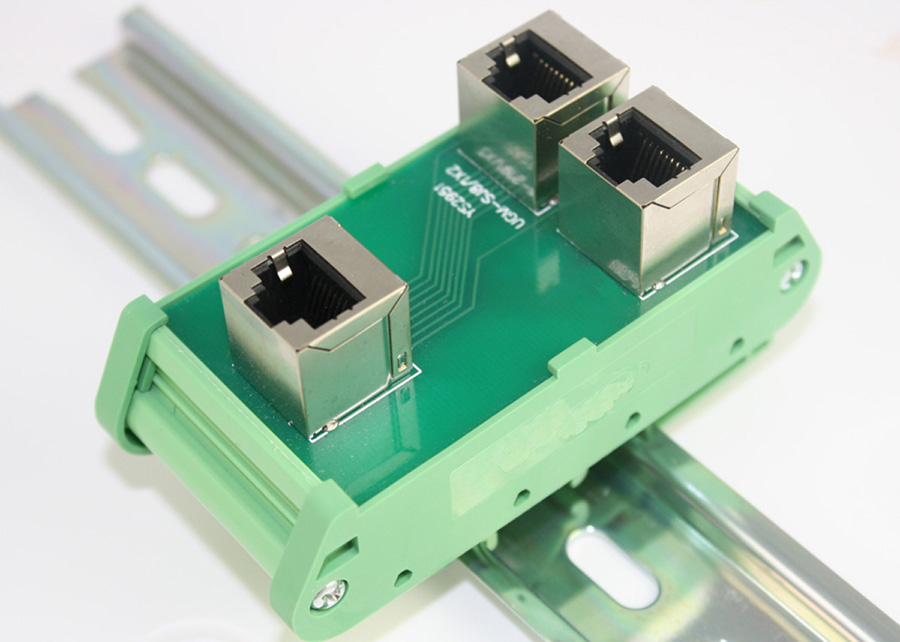

The IMRJS-45, DIN rail Mount unit makes it easy to double network connections.
Related To:
July 5, 2012
Aw 10954 1206np Asi

Each module features a modular DIN rail base with clearly ink-marked terminal blocks that simplify wiring.  Special sizes, circuits and custom labels can be made available directly from the company, which will make field wiring to RJ connectors easier with custom circuit function. The module is available in eight positions and has a 24 VDC voltage rating and 1 ADC current rating. Operating temperature is -25 to +60°C (-13 to 140°F). Available accessories include 7.5 x 35 mm slotted, 7.5 x 35 mm unslotted, 15 x 35 mm slotted and 15 x 35 mm unslotted DIN rails, each 2 meters long.

>>For more information on this product, click here

Automation Systems Interconnect, Inc.
www.asi-ez.com
877.650.5160
