Omega Engineering: Rangeable Industrial Pressure Transmitters

The PX5100 series of rangeable industrial pressure transmitters are for monitoring pressures in process automation, hydraulic systems, compressors, pumps and tank level applications.
Related To:
July 6, 2012
2 min read

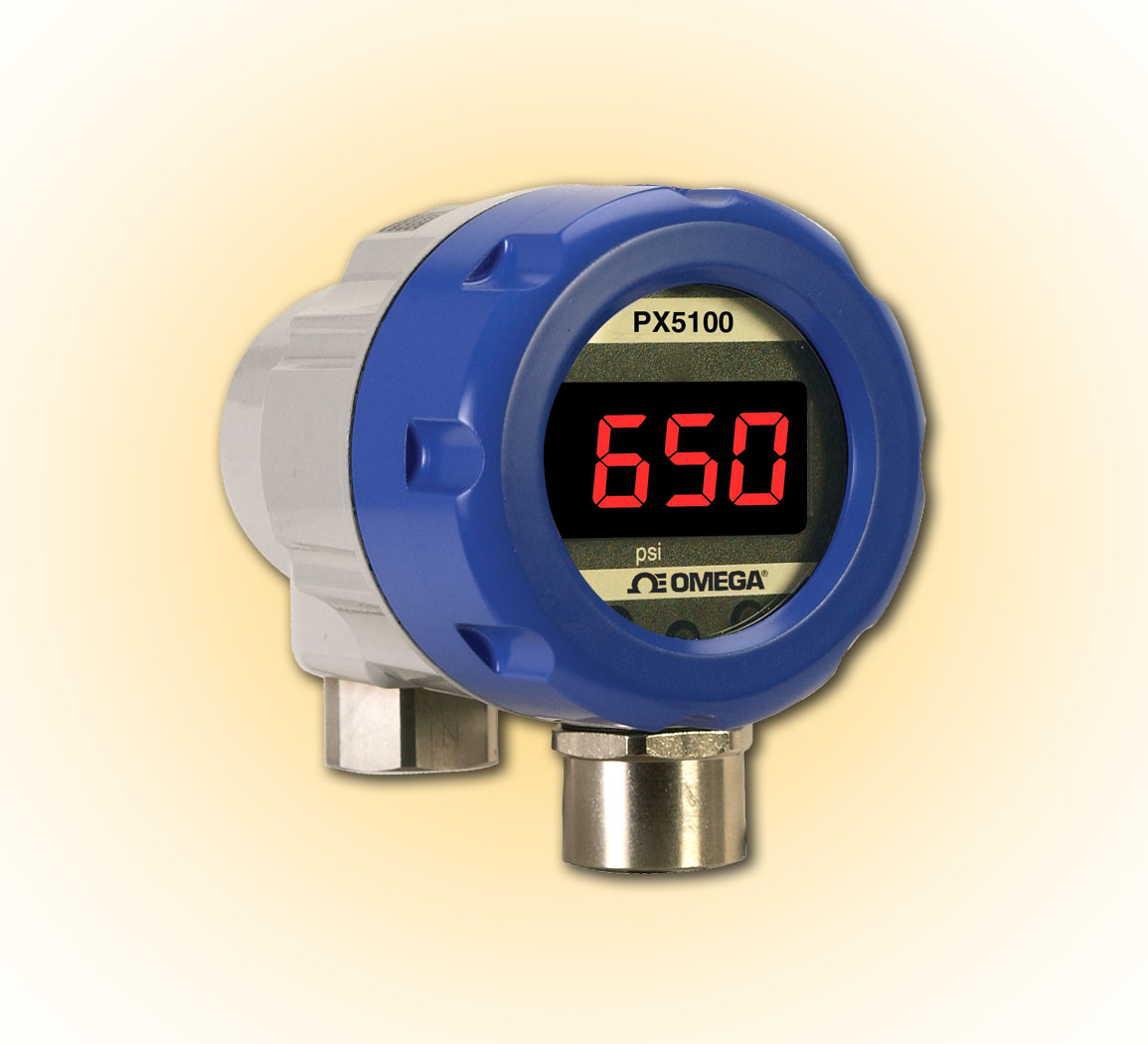

Aw 11223 1207np Omega

These CE compliant, compact transmitters feature a backlit display for easy reading, all stainless steel wetted parts, high life cycles, program lock function, quick ranging with internal push-buttons, a backlit display (rotates in 90 degree increments to fit the location) for easy reading. The units use thin film sensor technology and can monitor a wide variety of wet or dry media. Available in ranges from 0-50 to 0-7500 psi and compound ranges up to -15/50 psi, the transmitters includes min, max to record high and low pressure events and hold feature. The aluminum NEMA 4X (IP65) enclosure measures 2.65 inches in diameter and incorporates a backlit LCD display for local reading. The output is a two-wire configurable 4 to 20 mA signal that can be adjusted to re-range the transmitter or "tare" unwanted fluid head preloads. Rangeability for zero and span are from -10% to 110% FS URL (Upper Range Limit). This means a 100 psi transducer can have the zero set between -10 psi to FS 110 psi. For example zero could be set for 30 psi and maximum 90 psi so the output would be 4 mA at 30 psi, midpoint 12 mA would be 60 psi and 20 mA would be 90 psi.

>>For more information on this product, click here

Omega Engineering
www.omega.com
888.826.6243
