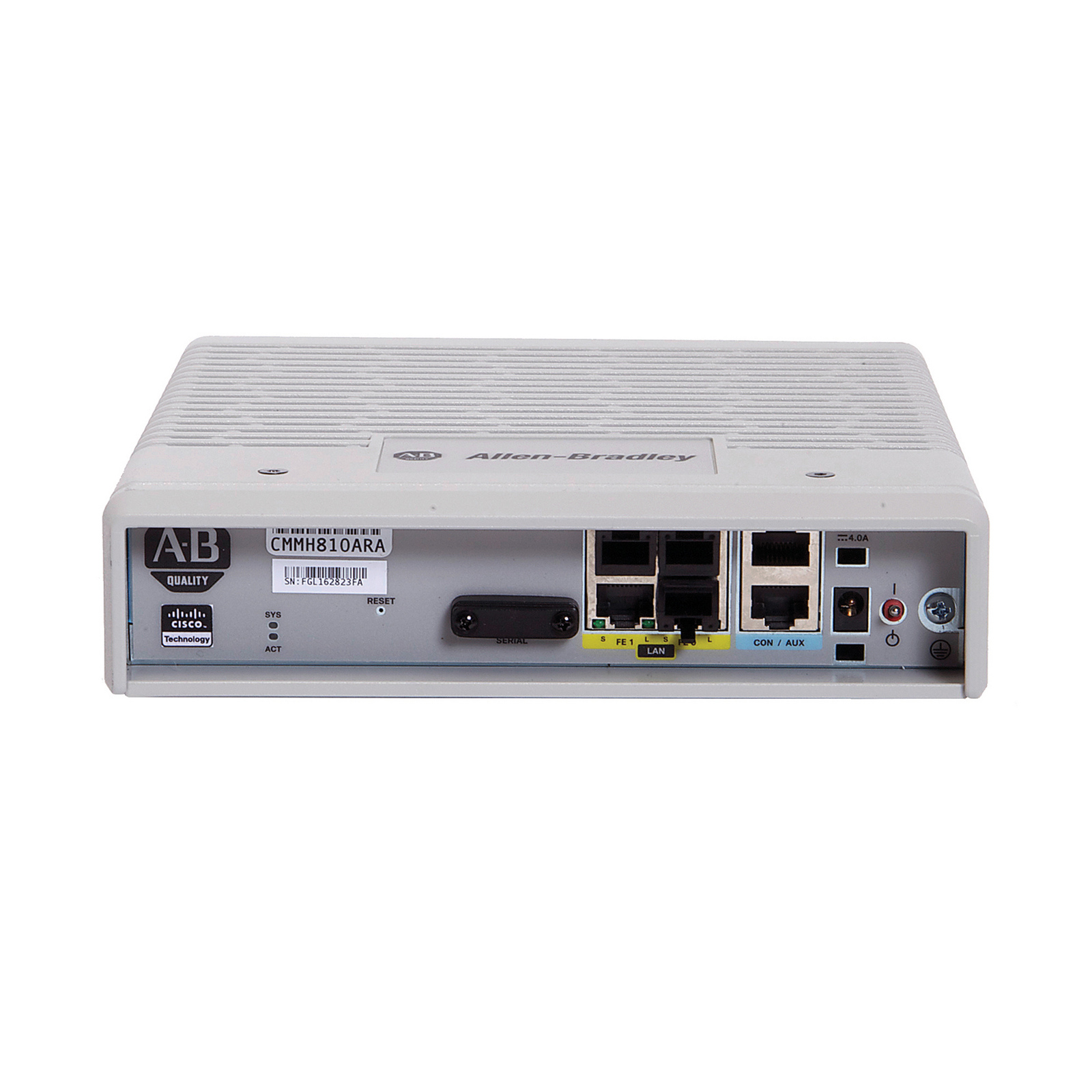

With VPN and firewall capabilities, the router restricts and regulates communication to help ensure a security perimeter is maintained and information exchange crossing the security boundary is not tampered with or interrupted. VPNs can also create a secure tunnel for server-machine communications to help protect cell/area zones from other machines in the facility. Firewall capabilities can monitor and block an input or an output that does not meet the firewall's configured policy. The router also enables manufacturing locations to connect to and communicate with remote locations and substations. For example, a remote machine - whether 100 feet or 1,000 miles away - can connect to a plant-based machine using the services router. The router runs on Cisco IOS, and includes a wide area network port and four Fast Ethernet-ports. The hardware includes embedded features such as: Network Address Translation (NAT), NBAR protocol filtering, Access Control Lists (ACL) and Quality of Service (QoS) for prioritization. It has extended shock and vibration capability, comes with a DIN rail mount, and operates in a temperature range of -25 to 60 ºC.
>>For more information on this product, click here
Rockwell Automation
www.rockwellautomation.com/
800.227.6143
