Antaira Technologies is a leading developer and supplier of industrial device networking and communication solutions for harsh environmental applications and is proud to announce its expansion in the industrial PoE networking infrastructure family: LNP-0702G-SFP and LNP-0702G-SFP-24 series.

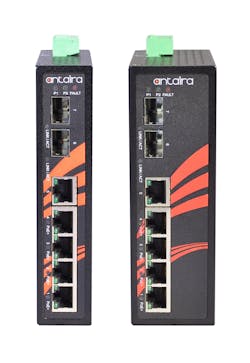

Antaira Technologies' LNP-0702G-SFP and LNP-0702G-SFP-24 series is a 7-port industrial PoE+ gigabit unmanaged Ethernet switch, with 48~55VDC high voltage power input(LNP-0702G-SFP) and 12~36VDC low voltage power input (LNP-0702G-SFP-24). Each unit is designed with five gigabit Ethernet ports that are IEEE 802.3at compliant (PoE+) on ports 1-4 (data and power output maximum 30W/port) and are compatible with IEEE 802.3 af PoE and the unit has two fiber dual rate (100/1000) SFP slots. The series support MDI/MDI-X functions and 9.6Kbytes jumbo frame. This makes it ideal for applications that demand high bandwidth and long distance communication.
This product series provides high EFT, surge (2,000 VDC), and ESD (6,000VDC) protection to prevent any unregulated voltage and can support the power redundancy feature using a dual power input design with reverse polarity protection. There is also a built-in relay warning function to alert maintainers when power failures occur.
Antaira's new LNP-0702G-SFP and LNP-0702G-SFP-24 series are perfectly designed industrial gigabit unmanaged Ethernet switches to fulfill any special needs for industrial automation, outdoor applications, and extreme ambient weather environment.
The LNP-0702G-SFP and LNP-0702G-SFP-24 are backed by a five year warranty and are IP30 rated, compact, fanless, DIN-Rail and wall mountable. Each series is built to withstand industrial networking hazards like shock, drop, vibration, electromagnetic interference (EMI) and temperature extremes version options in a standard -10 ~ 70°C model range or an extended operating temperature version in a -40 ~ 75°C range. The LNP-0702G-SFP model has dimensions of 30mm (W) x 99mm (D) x 142mm (H) and a unit weight of one pound, while the LNP-0702G-SFP-24 model has dimensions of 46mm (W) x 99mm (D) x 142mm (H) and a unit weight of one and a half pounds.
