XMC Graphics and Video Capture Board

Nov. 20, 2019

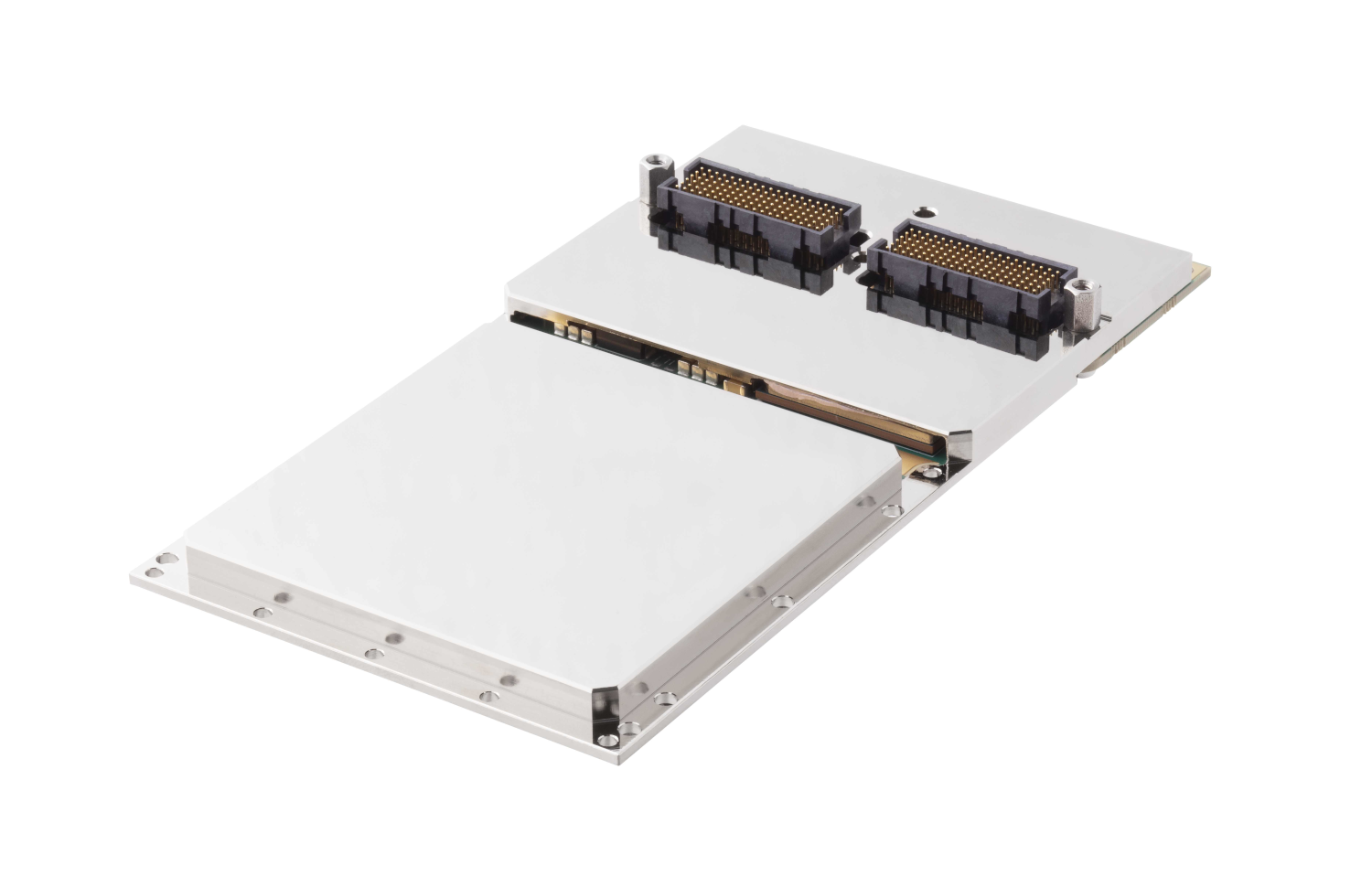

The NVP2102 from Abaco delivers 2.3 TeraFLOPS of peak performance with support for both CUDA and OpenCL.

Developed for use in the harsh and cramped conditions typical of battlefield platforms, the board provides an optimum choice for all forms of graphics/video processing input/output, including GPGPU applications such as machine learning and autonomy. Designed for graphics and video generation, the unit supports four 3G-SDI inputs, capable of 1080p60; two 3G-SDI outputs, also capable of 1080p60; two DisplayPort 1.4 ports capable of 4K resolution at 60Hz; and VGA. Support for H.265 (HEVC)/H.264 (MPEG-4 AVC) encode/decode is provided. The board meets the MIL-STD-810G standard: in its conduction cooled form, it is specified to operate at temperatures of -40 to +85 °C and in its air cooled form it is specified to operate at temperatures of - to +70 °C. The unit also benefits from support for the company’s AXIS ImageFlex, an image processing and visualization toolkit allowing rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms.

>>For more information on this product, click here

Abaco Systems
www.abaco.com
866.652.2226
