Laser Profiler with 3D Image Processing

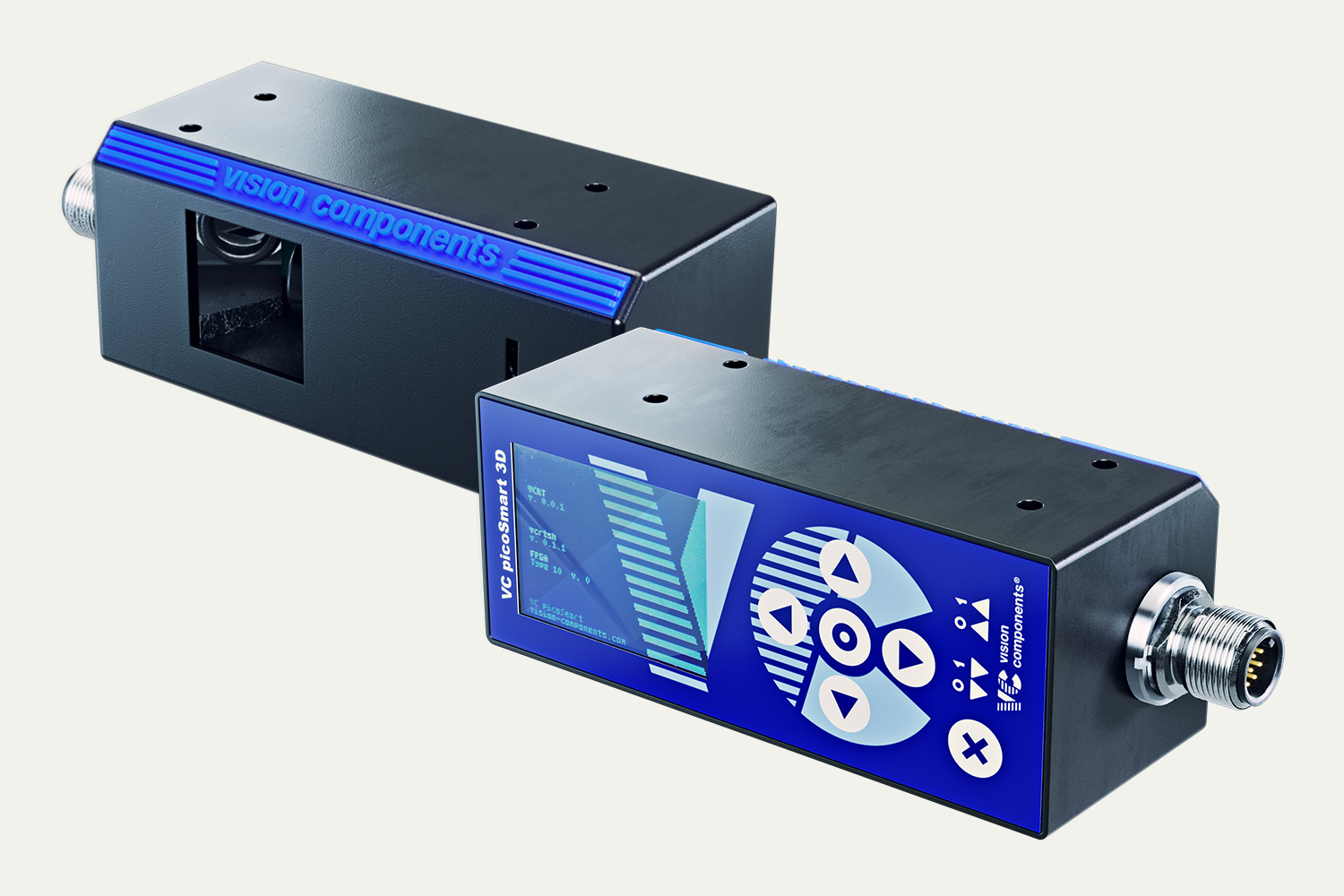

The new OEM laser profiler VC picoSmart 3D has integrated processors for 3D profile data analysis and additional image processing tasks. It contains a miniaturized embedded vision system with a 1-megapixel image sensor, an FPGA and a high-end FPU processor, and a line laser module with a blue high-power laser. The system is enclosed in a compact industrial-grade housing measuring 100mm x 40mm x 41mm and features a clear control panel and display. The FPGA is pre-programmed for 3D computation and the laser module operates under bright ambient light up to 100,000 lux. The 130-mW laser is rated class 2.
