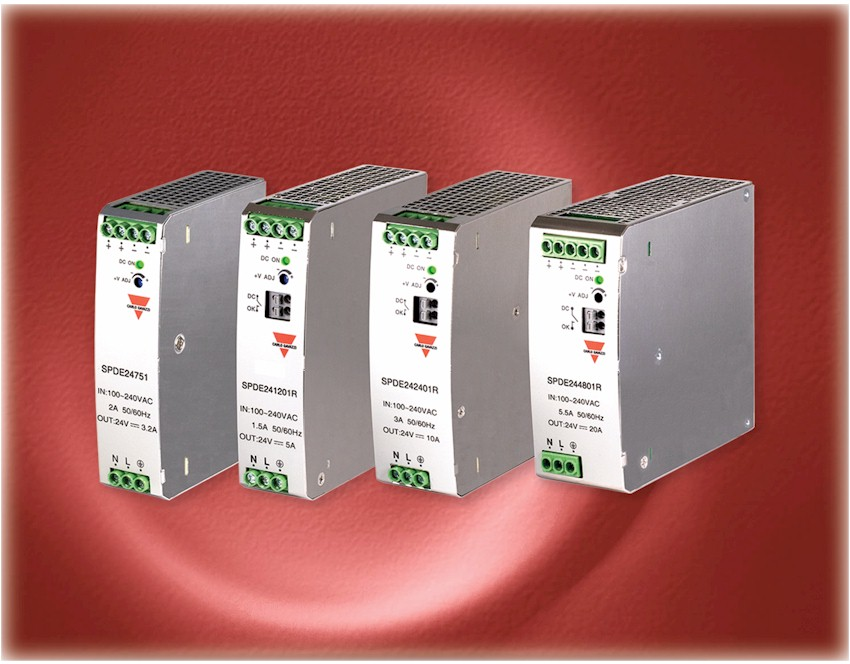

The new SPDE power supply series from Carlo Gavazzi consists of compact single-phase DIN rail power supplies designed for electrical panels that come in three frame sizes ranging from 75W with 32mm width through 480W with 48mm width. The SPDE series certifications include CE, UKCA, UL61010 and UL62368. Integrated diagnostic and protection functions such as output short circuit, over current, over voltage and over temperature provide the user with maximum output protection. Technical features include: a universal input voltage range of 90 Vac to 264 Vac and 120 Vdc to 370 Vdc; an output voltage range of 12, 24 or 48 Vdc; built-in active PFC; up to 94% efficiency; and overvoltage category II.
