Eplan: Switchgear Design Made Easier with 'Copper' Module

Sept. 13, 2012
The "Copper" add-on module for EPLAN Pro Panel Professional allows free design, configuration and virtual assembly of switchgear control cabinets and the necessary busbar systems.

The "Copper" add-on module for EPLAN Pro Panel Professional allows free design, configuration and virtual assembly of switchgear control cabinets and the necessary busbar systems. With EPLAN Pro Panel "Copper", information from the "Rittal Power Engineering" planning tool, which is software used for the configuration and design of low-voltage switchgear systems. For example, it can be utilised to fit the necessary Rittal system components into a virtual 3D model.

The comprehensive new engineering solution begins with the design of the switchgear systems. With EPLAN Pro Panel "Copper", users can simply transfer the results of the design process into the EPLAN overall project to allow further virtual setup and assembly of the control cabinet. The "Copper" module allows planning of various components, including switchgear systems, based on the Ri4Power solution from Rittal or the RiLine60 modular busbar system and the TS 8 control cabinet. Any busbar and the associated connecting elements can be individually designed and assembled virtually.

How it works

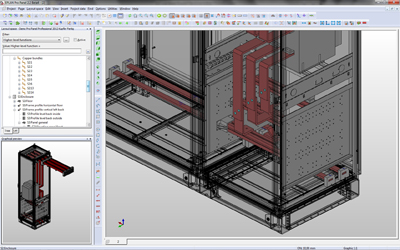

The casing and accessories, equipment such as mains switches and circuit breakers, and copper rails required are collated within EPLAN from an online component library and put together to form a virtual prototype of the control cabinet. Where the busbar technology stops, users can design copper rails and connection elements freely within the 3D assembly structure and bend and adapt them as necessary.

Design and production-related information, such as bending radii or company-specific bending rules, is utilized directly during the busbar design process and processing components for the drawing. An individual shape library helps keep numbers of variants down while at the same time, the level of standardisation for production and assembly increases. The innovative EPLAN e-Touch Technology allows copper wires to be fitted intuitively.

Detecting potential problems early
Drill holes, recesses and punch holes can be defined for all kinds of connections for copper parts in the 3D assembly design - either as a norm-based drilling template or by placing them individually. The information required to produce and process the components is provided from EPLAN for manual production or to control NC-based bending, drilling or stamping machines. Appropriate test runs on the system and the built-in anti-collision system allows the whole virtual prototype of the switchgear to be checked. Engineers can detect potential problems earlier within the product development process. This prevents last minute corrections at the production and assembly stage, which could delay delivery. However, if a change does need to be made, the system automatically updates all dependent components, parts lists, reports and production drawings.

The system generates reports for material ordering, cutting lists and valuable production and assembly documents. The specific integration into the product development environment ensures that the data for equipment procurement, order preparation and coordination, production and fitting is used.
