40 & 65 Watt Encapsulated AC/DC Power Supplies

Jan. 11, 2022
Medical & IT safety approvals.

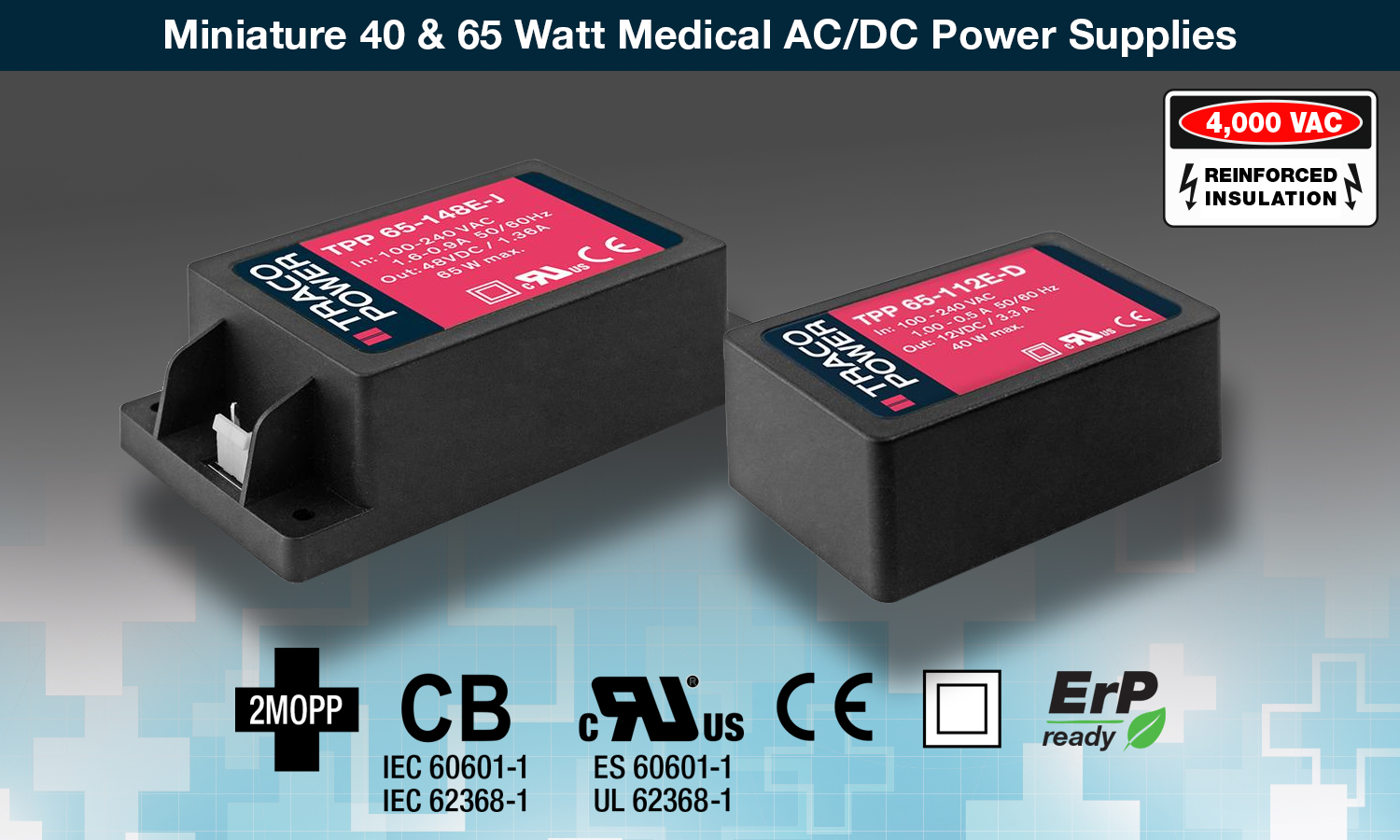

Traco Power announces their new TPP 40E & TPP 65E families of miniature encapsulated AC/DC power supplies with safety approvals for both Medical and Industrial applications. Consisting of 6 models within each wattage family offering single outputs of 5 / 12 / 15 / 24 / 36 / 48 V with up to 94% efficiency. The small footprint with PCB or chassis mount versions make these new products an attractive solution for a wide range of requirements.
All models feature:

  • PCB-mount package measuring 2.20 x 3.20 x 1.20” (suffix “-D”)
  • Chassis-mount with JST connectors measuring 2.20 x 4.30 x 1.20” (suffix “-J”)
  • I/O isolation 4000 VAC with reinforced insulation
  • IEC/EN/ES 60601-1 (2 x MOPP) and IEC/EN/UL 62368-1 (Class I & Class II)
  • Risk management process according to ISO 14971 incl. risk management file
  • Low leakage current <100 µA rated for BF applications
  • Operating temperature range -40°C to 80°C
  • EMC compliance according to IEC 60601-1-2 4th edition and EN55032 class B
  • 5-year product warranty
