4-Wire Intelligent Analyzers

Oct. 1, 2008
Emerson Introduces 4-Wire Intelligent Analyzers with Advanced Digital Communications Capability.

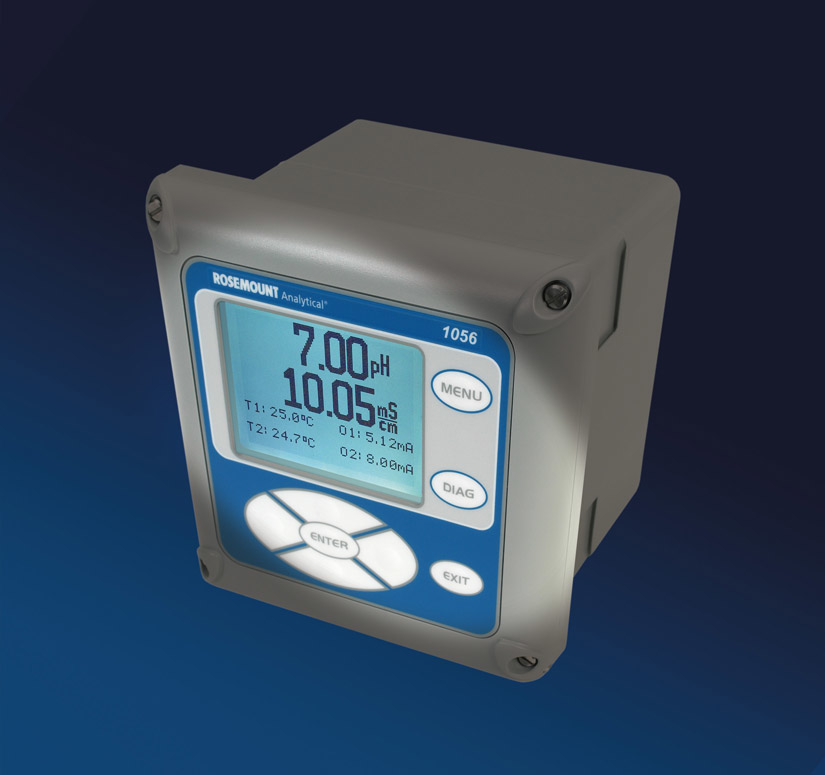

Two new versions of the Rosemount Analytical Model 1056 analyzer are now available. The new Model 1056-HT and 1056-DP 4-wire, dual-input analyzers include complete HART and PROFIBUS DP digital communications capability for full operations and maintenance advantages in plants using the digital protocols.

The HART-enabled analyzer allows remote calibration, continuous monitoring of four live process variables and configuration from Emerson's AMS® Suite or DeltaV™ host application, legacy DCS, or SCADA system. The full complement of diagnostics allows plants to estimate the life of in-process sensors and perform required maintenance on a timely basis.

The Model 1056 is a multiparameter instrument allowing single or dual inputs in any combination of pH/ORP/ISE, resistivity/conductivity, percent concentration, chlorine, oxygen, ozone, temperature, turbidity, pulse flow and 4-20mA current input. The instrument has a large display and intuitive menu screens with advanced diagnostics and help screens. Ease of installation is facilitated by modular boards, removable connectors, and easy-to-wire power, sensors and analog outputs. Seven languages for user menus are included with every analyzer.


www.emersonprocess.com
