Carlo Gavazzi: 3-phase monitoring relay

April 4, 2017

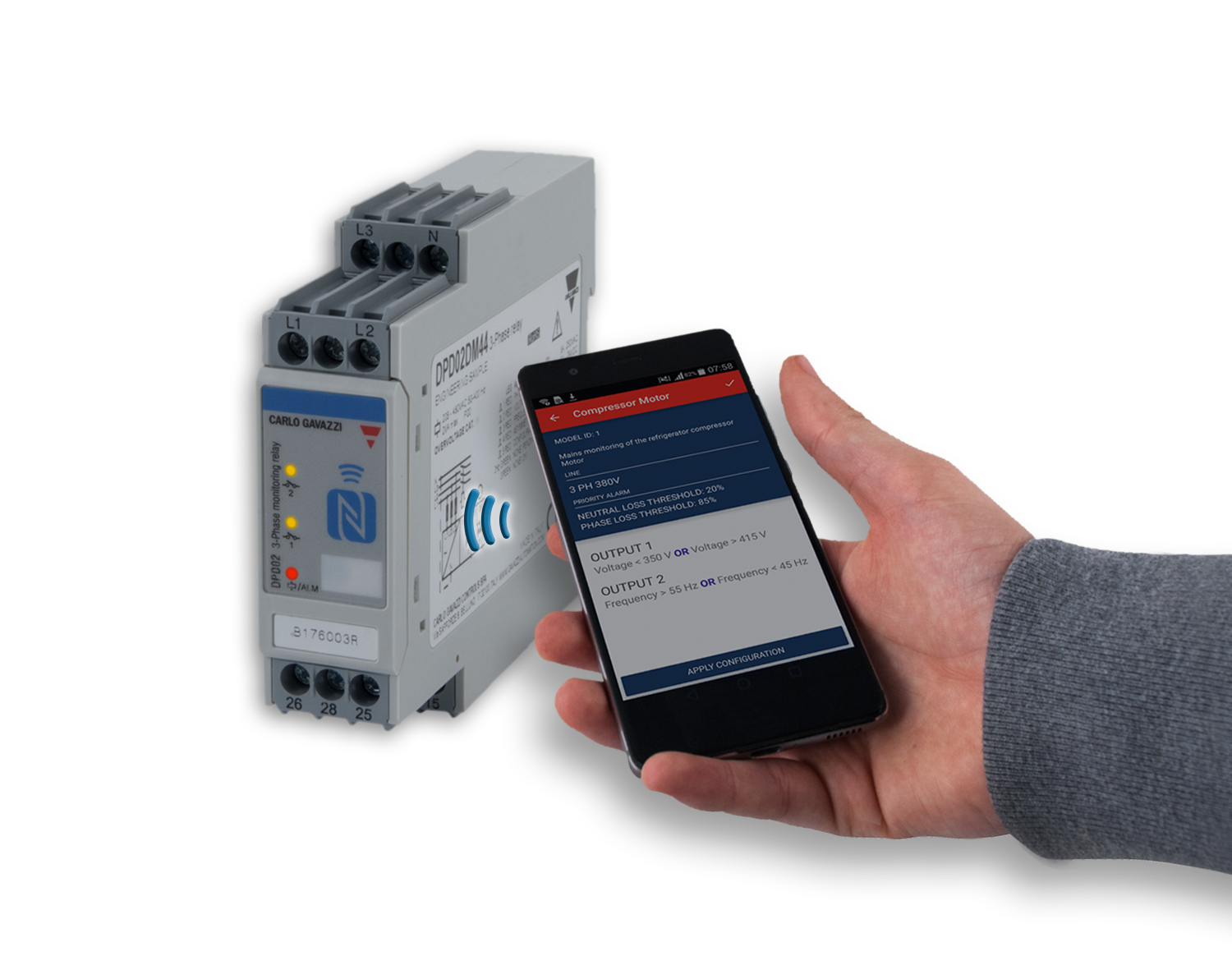

Carlo Gavazzi offers the new DPD Series Three-Phase Monitoring Relay with NFC configuration; this relay provides the utmost flexibility in very compact dimensions, as it offers a wide range of features in a mere 22.5 mm product width.

It provides protection against phase reversal, phase loss and if the phase asymmetry, voltage or frequency measurements are not within the user-configured settings and/or thresholds.

The DPD Series settings can easily be modified through an Android App via smartphone/tablet or via a USB NFC Reader/Writer (part number ACR1252U) connected to a computer. Under and over threshold settings can be set, as well as hysteresis and time delays. They are uploaded into the DPD Series by means of its NFC configuration. Neither potentiometer settings nor DIP switches are used for the device set-up, and after it is set-up, it can be password protected, to ensure safety while in use.

The main advantage of the DPD Series is its high versatility and multifunction design. The set-up can be changed at any time and can be replicated, and stored on as many devices as needed. The set-points are extremely precise as they are digital, and much more accurate than they would be with potentiometer settings.

The DPD is widely considered a game-changer in monitoring relay technology, as the user can set up to 10 alarm conditions, and then these alarms are combinable via AND/OR logic to provide up two relay outputs.
