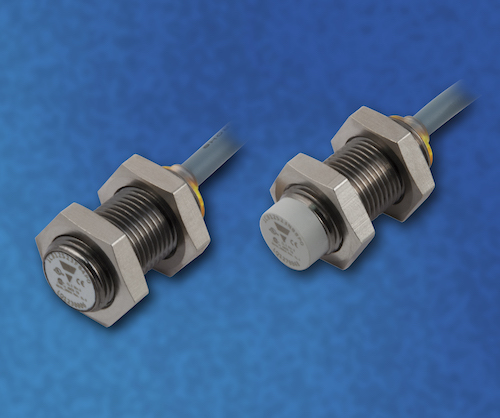

Extra-Short M12 Inductive Proximity Sensors

Carlo Gavazzi is pleased to announce an addition to the popular ICB Series family of inductive proximity sensors, with the launch of the ICB12S Extra-Short Inductive Proximity Sensors. With a thread length of only 23mm, and housing lengths as short as 25mm, these ultra-compact M12 sensors are an ideal solution where space is limited and high performance is required.
The new Extra-Short Inductive Sensors inherit many of the same impressive benefits of our longer ICB Series sensors, including rugged IP67 nickel-plated brass housings, extended sensing distances of up to 8mm, status LEDs which are clearly visible from any direction, a wide operating temperature range, a high switching frequency, and protection from short circuits and overloads. The microcontroller-based design ensures the highest degree of accuracy and repeatability in operation.
Main features of the ICB12S Extra-Short Inductive Sensors include:
• M12 extra-short 23mm thread length
• Sensing distance: 4mm flush, 8mm non-flush
• Operating frequency up to 2000 Hz
• Operating temperature range:
-25 to +80°C (-13 to +176°F)
• NPN or PNP, NO or NC output
• 2m oil resistant PVC cable
• Yellow LED clearly visible from any directions
• Output DC 200 mA
• CE, cULus and cCSAus approved

For more information, click here
