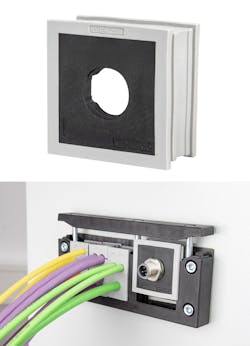

The KT-M is ideal for interfacing to signal, data, power or hybrid connectors by simply screwing them into the threads of the KT-M. Even hose fittings or pressure compensation elements can be easily screwed to the KT-M.
The grommet KT-M is built on the basis of a large KT cable grommet. In this gromeet a polyamide body is integrated. The KT-M is available with inner threads of M12x1.0, M16x1.5, M20x1.5 and M25x1.5. Alternatively, the blind grommet KT-M is available for special solutions. The integrated polyamide body is completely closed on one side. The effective area is 24x24mm, the wall thickness 6mm. Special bores can be made or smaller flange bushes (for example for hybrid device connectors) can be attached. The KT-M is available from now on and can be obtained directly from the manufacturer.
