NEW stripax ULtimate Stripping Tool

Oct. 29, 2014

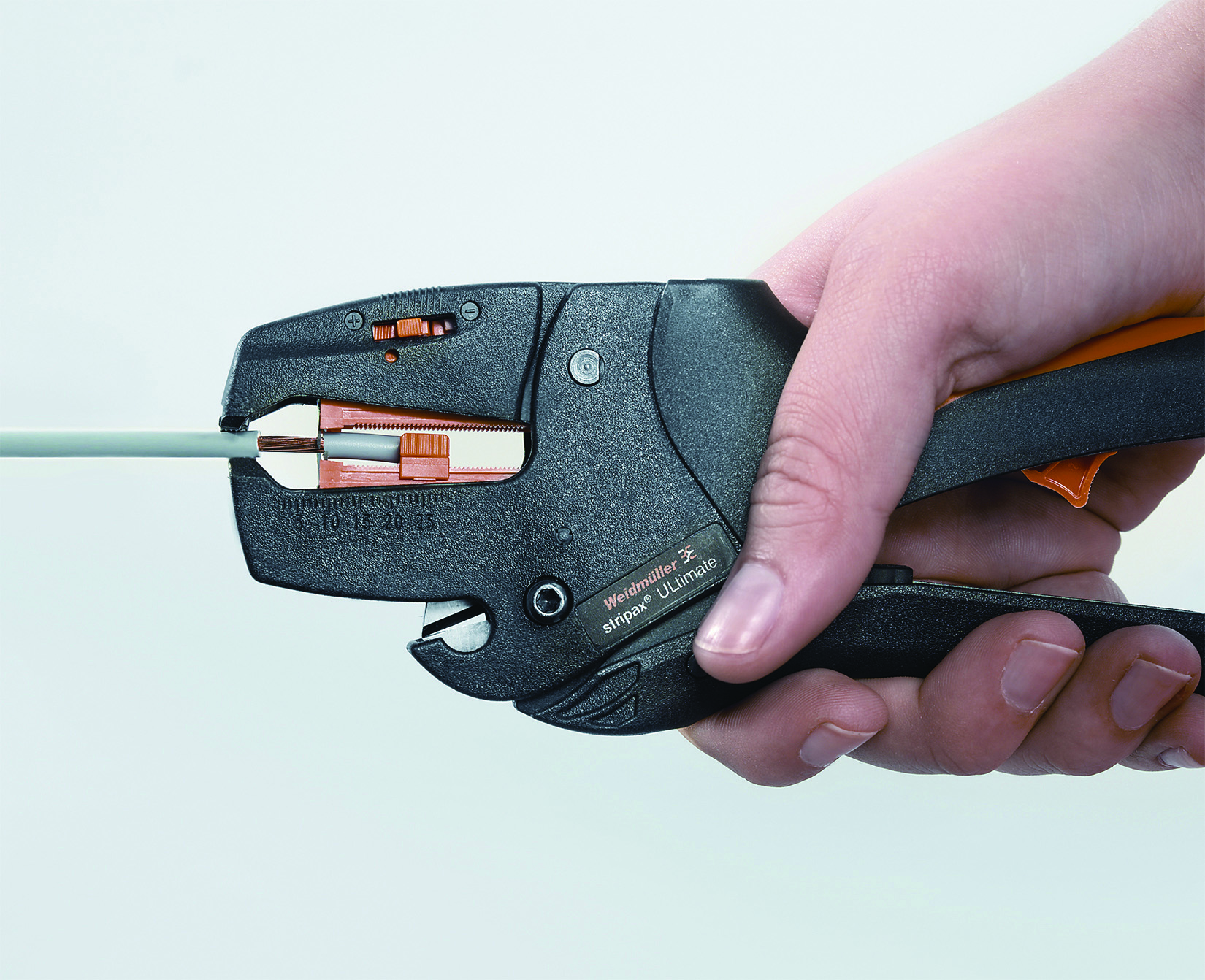

Weidmuller expands their line of stripax self-adjusting wire strippers with the addition of a new, high-precision stripping tool, the stripax ULtimate.

Weidmuller expands their line of stripax self-adjusting wire strippers with the addition of a new, high-precision stripping tool, the stripax ULtimate. Designed to strip wires that have tough, halogen-free insulation, the stripax ULtimate simplifies and reduces wire preparation time. Halogen-free insulating materials are rapidly becoming mandatory in applications such as wind turbines, where exposure to harsh conditions and extreme environments is common. The stripax ULtimate is the ideal hand tool for halogen-free insulation and other wires specified for use in high temperature environments, including those classified by UL as THHN and SIS.

The stripax ULtimate’s unique blade set allows users to strip most halogen-free insulation materials and other tough insulation types from AWG 24... 10, up to a length of one inch. The self-adjusting blade, also found on the original stripax and stripax 16, allows the stripax ULtimate to automatically adapt to the wire size. An additional adjustment can be made, by turning a screw beneath the strip blades, for large gauge or wire with very hard insulation. This new stripping tool also features a three-stage partial stripping function to retain a portion of stripped insulation on the tip of the conductors. This helps prevent the wire strands from fanning out, simplifying the process of ferrule placement.

Ergonomically designed, compact and lightweight at only 7.5” and 6 ounces, the stripax ULtimate offers a number of design features to make wire stripping easier and ensure a long tool life: it provides a cutting option for wire diameters up to 10 AWG, with a foldable protective cover to prevent accidental wire cutting during stripping; the clamping jaws open automatically after stripping; blade replacement is quick and easy; the wire stop mechanism for strip length and insulation thickness settings adjust easily via a slider; and double-insulated wires are processed in two operations without any special adjustment.

The new stripax ULtimate for halogen-free wire stripping is now available from Weidmuller with part number 1468880000.
