Angle sensor with integrated can electronics

Aug. 6, 2010

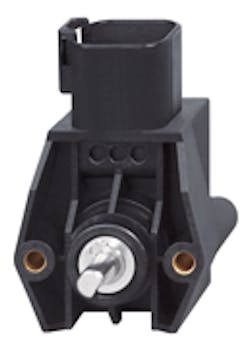

The new 424CO is a rotary position sensor with an integrated CANopen protocol according to ISO 11898.
This new product is based on Hall effect magnetic sensing technology, therefore the sensing element is contactless, thus making it extremely reliable in demanding environments such as construction equipment, agricultural tractors and combines, and other industrial applications.The 424CO has a measuring range of 360° with a resolution of 0.1° over the entire angular range. Its shaft is supported by ball bearings in order to allow radial forces. The sensor is protected to IP67, and operates over a -40 to +85° C temperature range. The electrical connections are through a 6 pin Deutsch connector.The 424CO withstands EMC up to 200V/m according to ISO 11422-5, making it extremely suitable for vehicle applications. The CANOpen protocol offers various options such as baud rate selection or direction of rotation. The 9-32 VDC supply voltage is suitable for battery.Elobau can provide cable sets with different lengths and actuating levers for the shaft actuation as optional accessories.Elobau is a vertically integrated manufacturer that performs all circuit and cable assembly, plastic molding, assembly and full performance testing at its factories. Thus, modifications to suit virtually all industrial and commercial requirements are achieved quickly and in a cost-effective manner, through the design and engineering talent resident at Elobau. Interested parties should contact Elobau for full details on these and other controls, sensors and machine safety products. Elobau Sensor Technology, Inc. - www.elobau-st.com
