Compact Switching Power Supplies

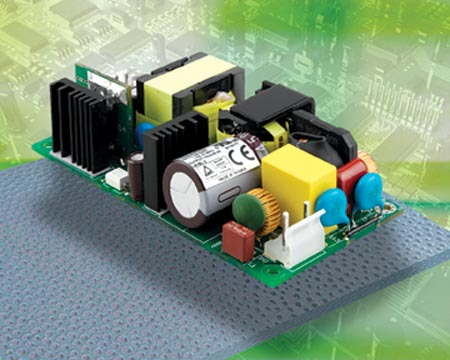

The Cincon CFM101S Series of high-density/high-efficiency switching power supplies is provided in a compact, 2x4x1.10-in. open-frame package with active power factor correction and convection-cooled operation.

Aw 1626 1007 Pwrgte
The CFM101S series features universal AC input (90-264VAC); high-efficiency operation up to 89%; active power factor correction for EN61000-3-2 Class D compliance; adjustable single output voltages ranging from 12-48VDC; 0-70C operating temperature range; full load convection-cooled operation up to 40C; and reliability in excess of 200,000 hours. The series has been qualified for Class B emissions and is safety approved to UL/cUL 60950-1, TUV EN60950-1 standards and bears the CE Mark. Evaluation quantities are available from stock with standard lead times of 8 weeks. Pricing is as low as $32 in 1,000 piece quantities.

PowerGate LLC
