Signal Conditioners Support Multiple Signals

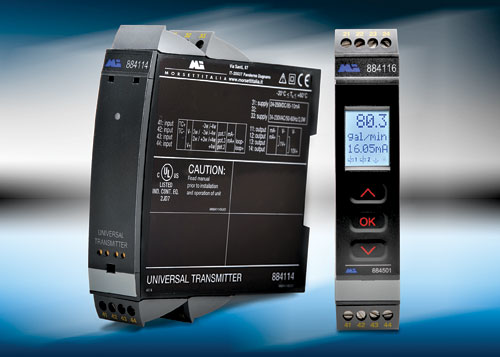

Models 884114 and 84116 DIN-rail mountable signal conditioners come in plastic slim-line housings and convert, isolate and transmit scale signals from a wide range of process sensor and controller I/O.

Mar 5th, 2010

Aw 2057 1003 Autodir

They support scalable input signals including mA, VDC, thermocouple with internal cold junction compensation, two to four-wire RTDs, linear resistance and potentiometer signals. Both models feature mA and VDC outputs, while the 84116 model adds two individually programmable relays for alarming and control functions. Isolated universal supply voltage input eliminates the need for separate transformers or power supplies. Pricing starts at $175.

AutomationDirect
www.automationdirect.com
800.633.0405
