Six-port Unmanaged Ethernet Switch

Feb. 9, 2010

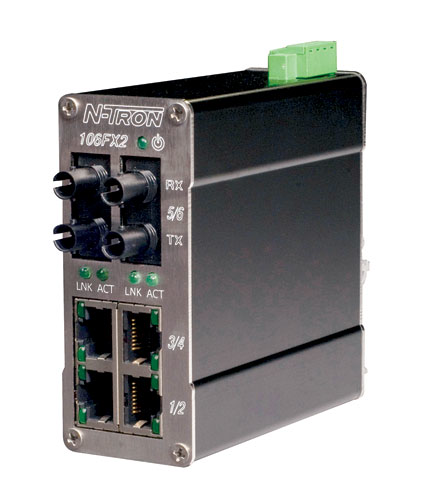

Housed in a hardened, metal, DIN-Rail enclosure, the 106FX2 is a low-cost, unmanaged, six-port Industrial Ethernet switch designed for use in industrial data acquisition, control, and Ethernet I/O applications.

Product features include: compact size and small footprint; unmanaged operation; full IEEE 802.3 compliance; four 10/100BaseTX RJ-45 ports; two 100BaseFX ports with ST or SC connectors; extended environmental specification; -40°C to 70°C operating temperature; rugged DIN-rail enclosure; ESD and surge protection diodes on all ports; redundant power inputs (10-30VDC); LED link/activity status; and auto sensing duplex, speed and MDIX on copper ports. OEM pricing ranges from $349 to $1,964.

N-Tron Corp.
